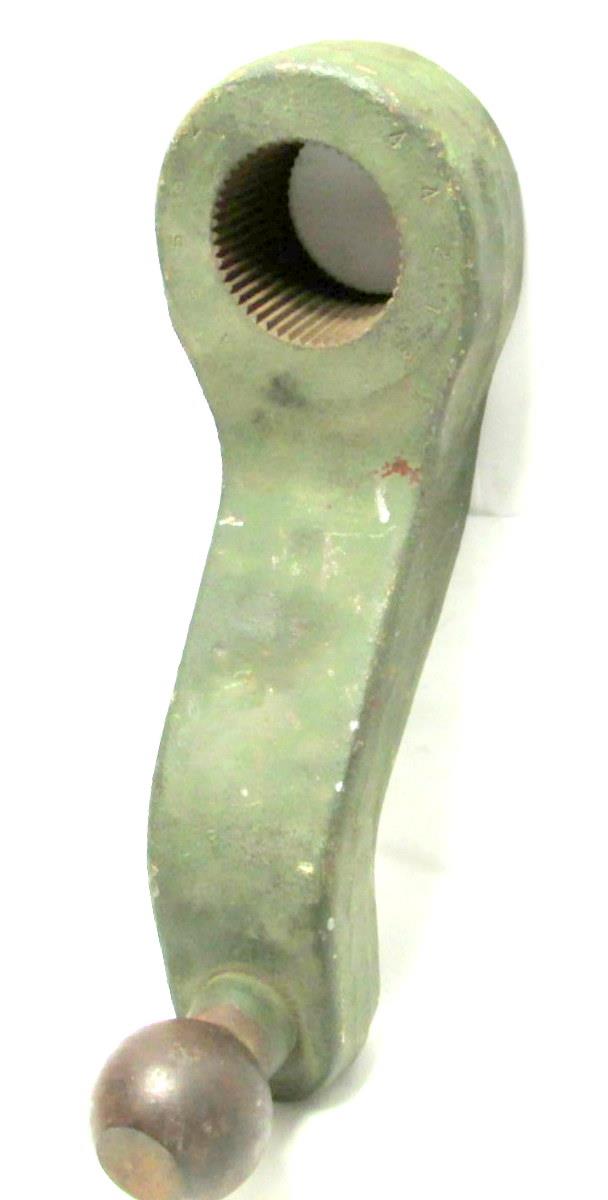

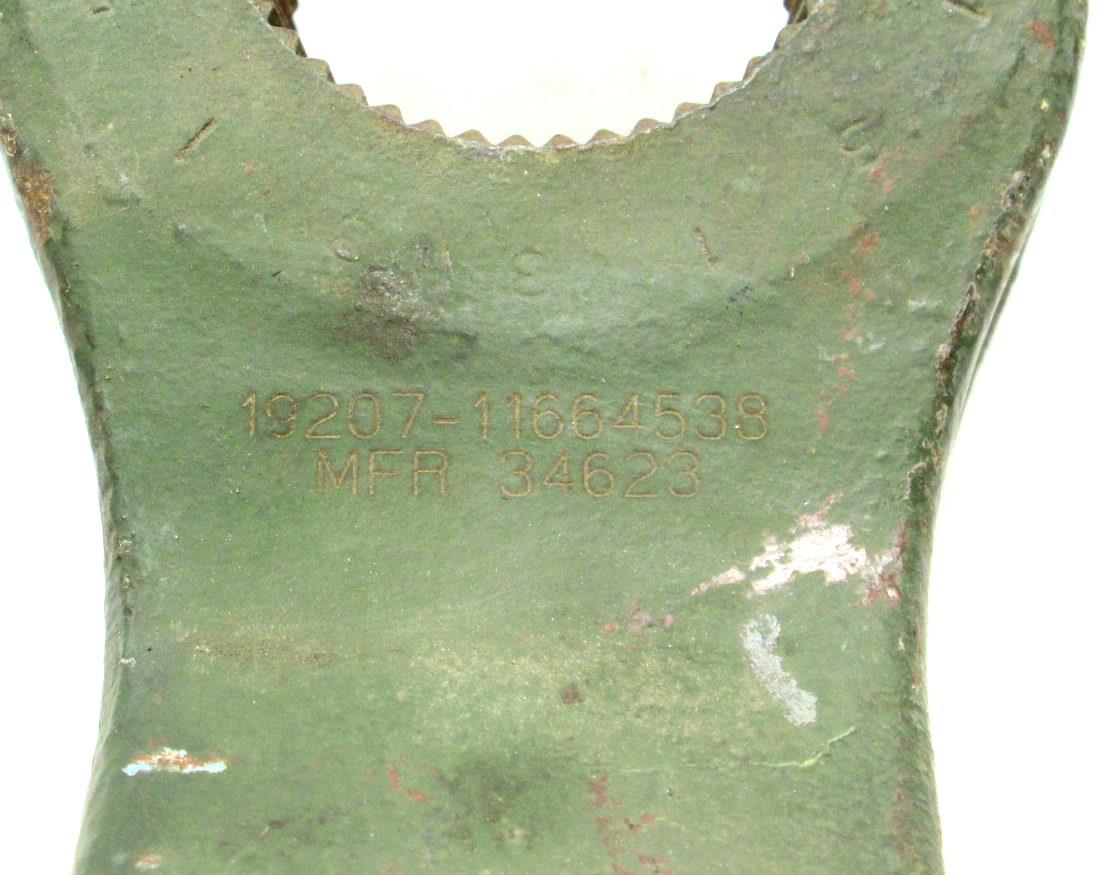

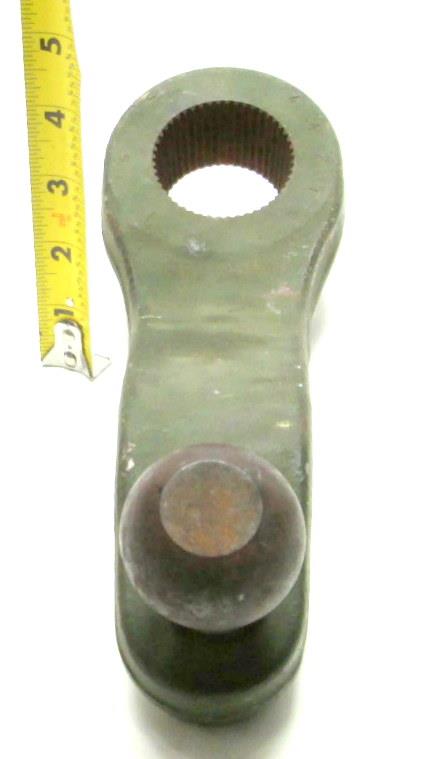

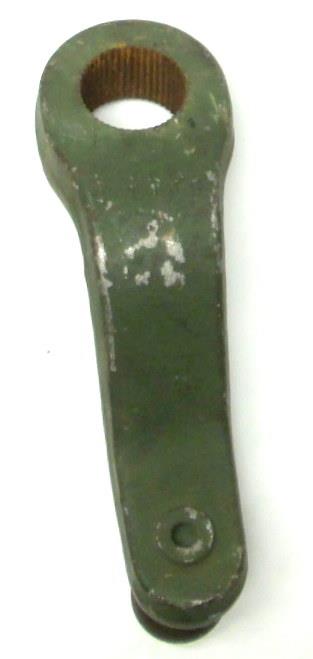

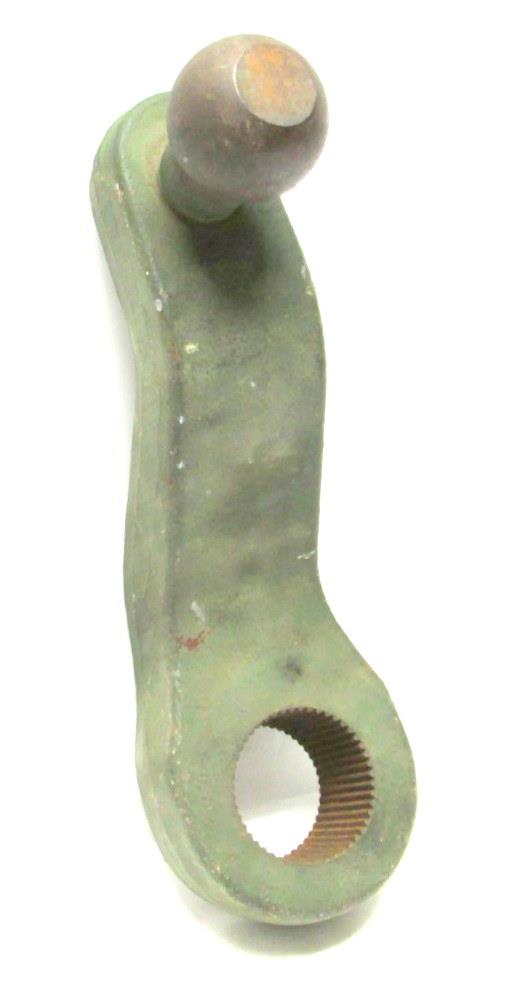

Drag Link Steering Gear Arm M809
- Color may vary

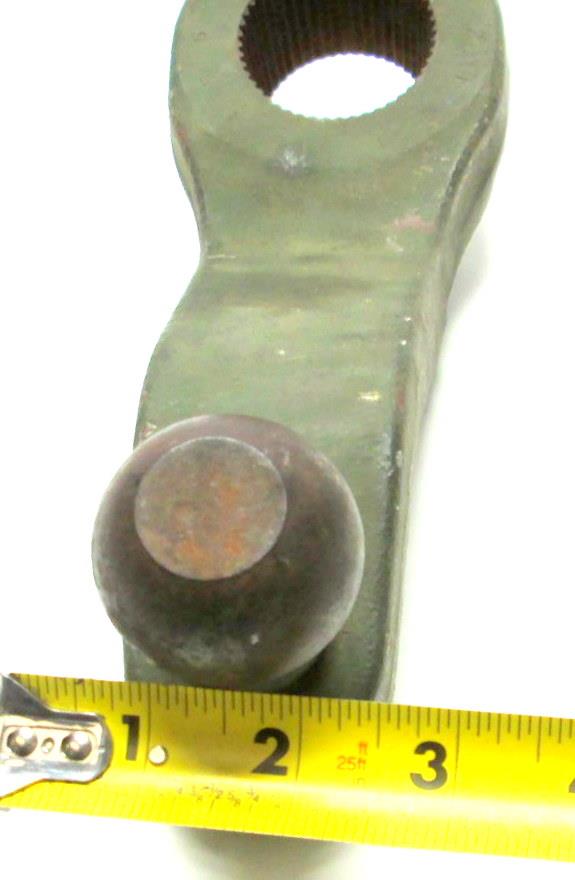

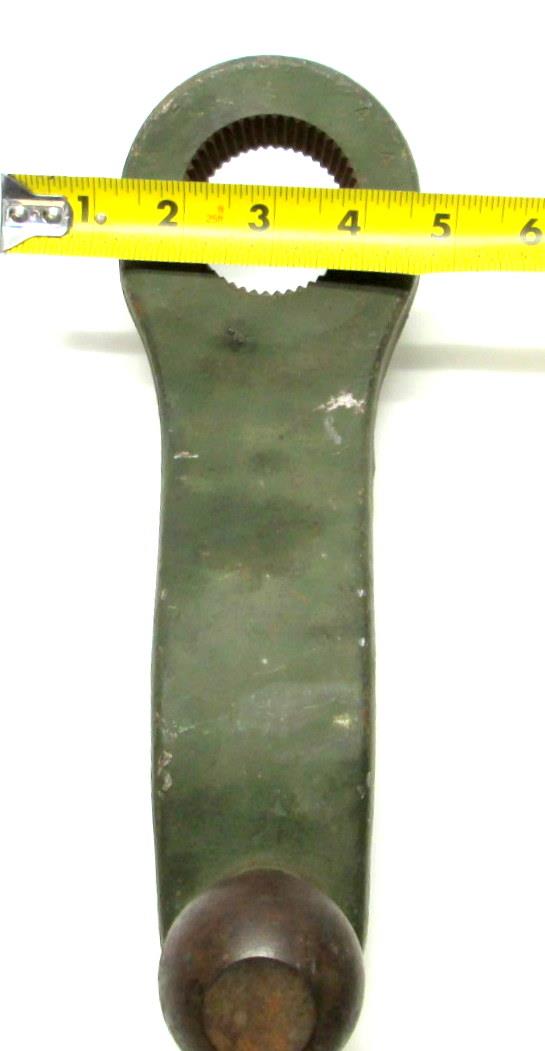

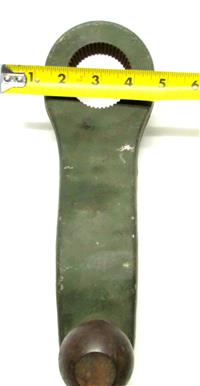

- Diameter 1.733 IN
- Taper Length 0.313 IN MIN 0.375 IN MAX

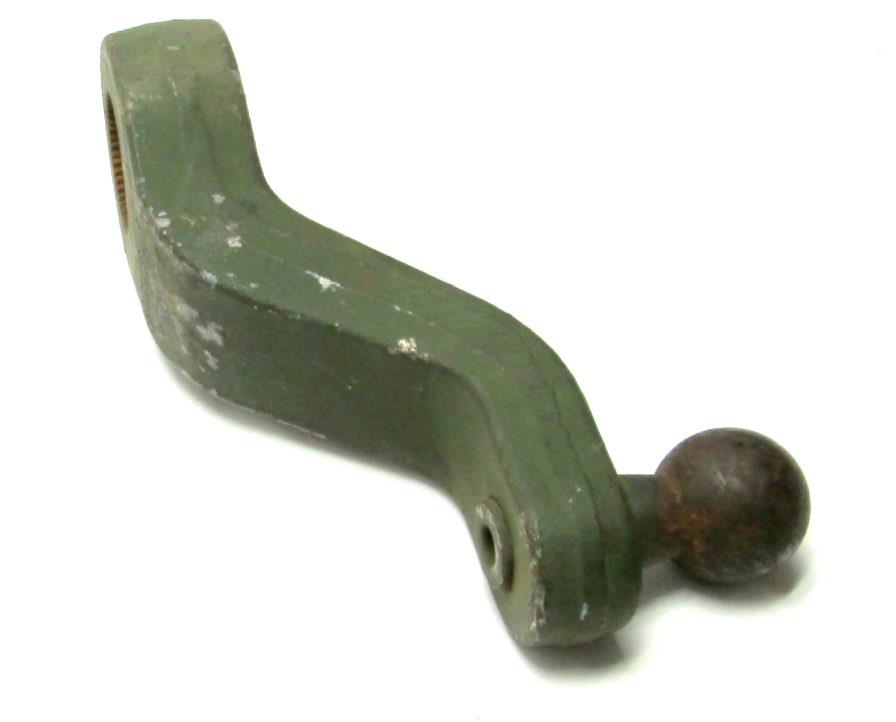

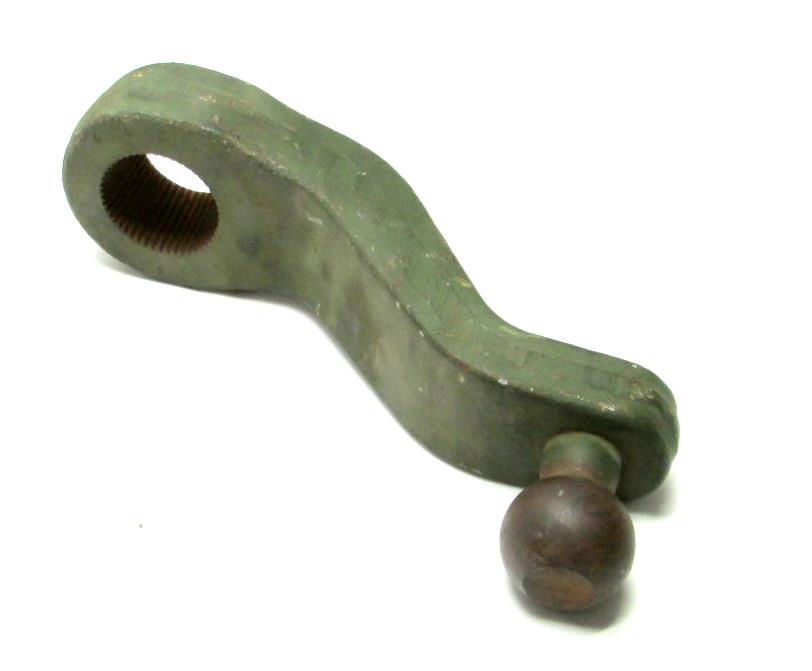

- Design Type Offset
- Sector Shaft Mounting End Overall Thickness 1.590 IN MIN 1.650 IN MAX
- Sector Shaft Mounting End Serrated Bore Included

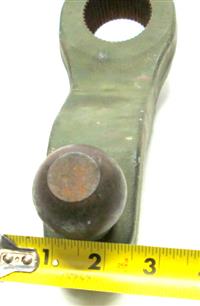

- Drag Link End w/ Integral Ball

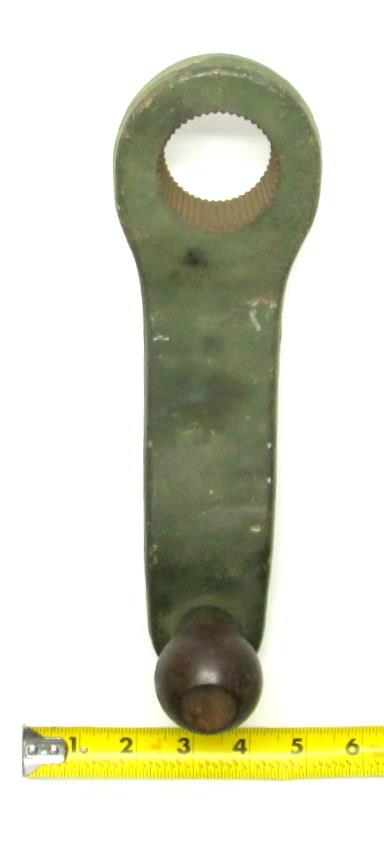

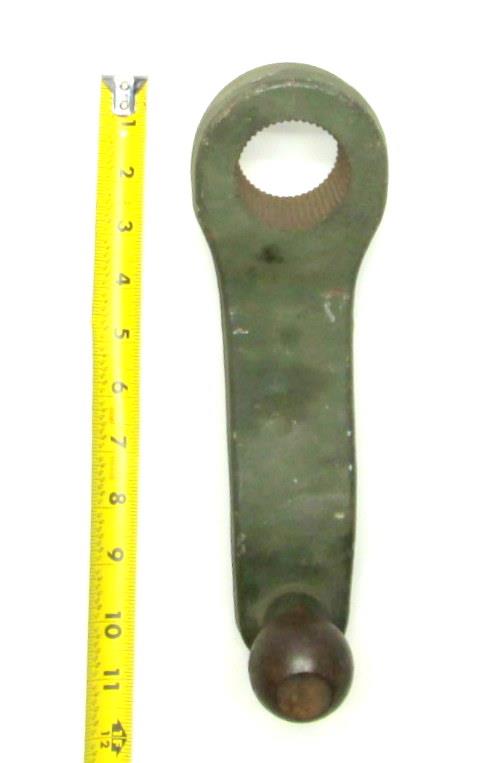

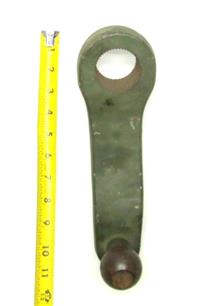

- Center to Center Distance Between Ball/Ball Stud Hole and Sector Shaft Bore 7.000 IN MIN 7.120 IN MAX
- Taper 0.750 Per Foot in IN
- Shape Straight

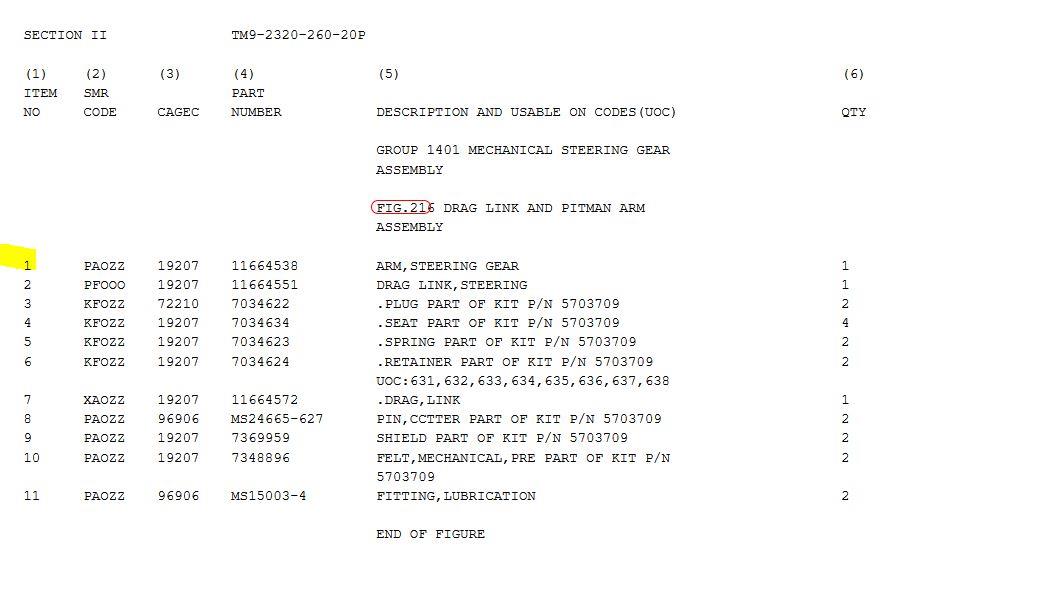

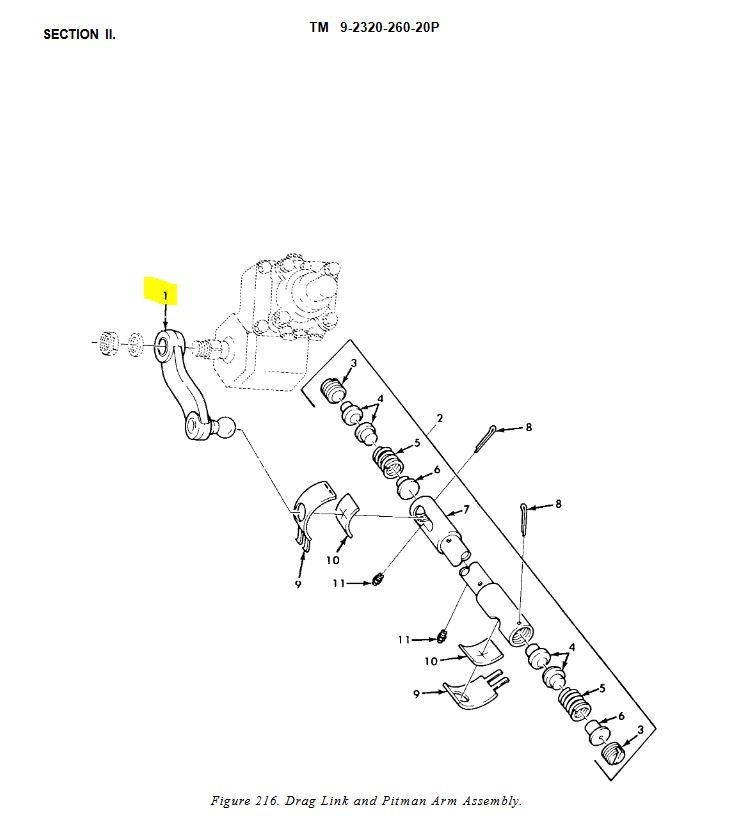

- Item No 1 in Diagram
Click Here For Drag Link Ball Socket M809 M54 M939A1 M939A2
Fits: 5 Ton 6x6 Military Truck
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
