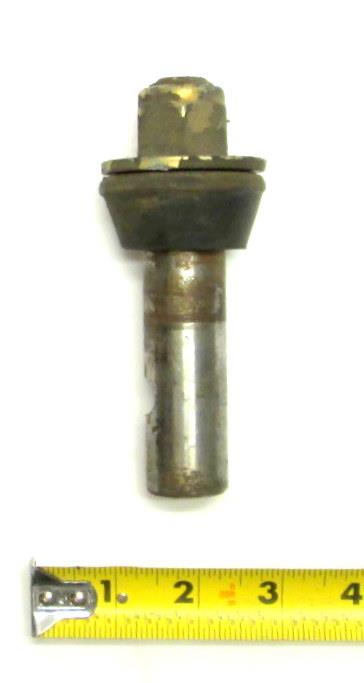

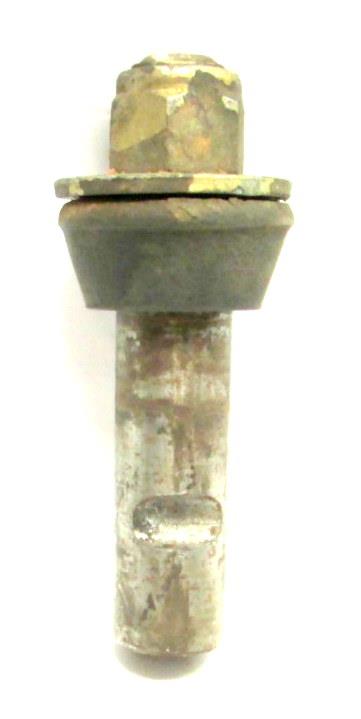

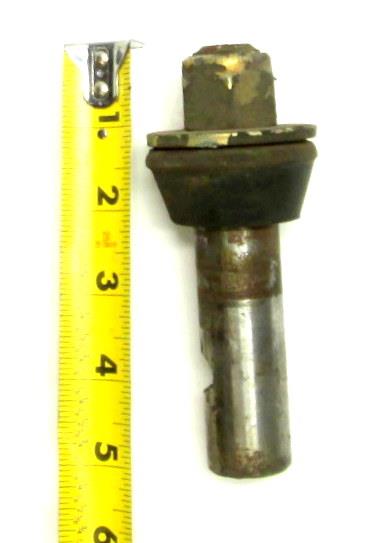

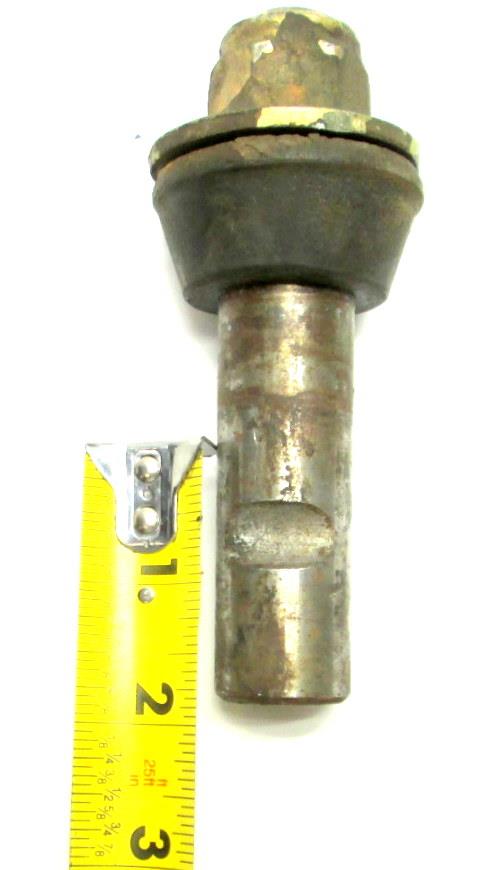

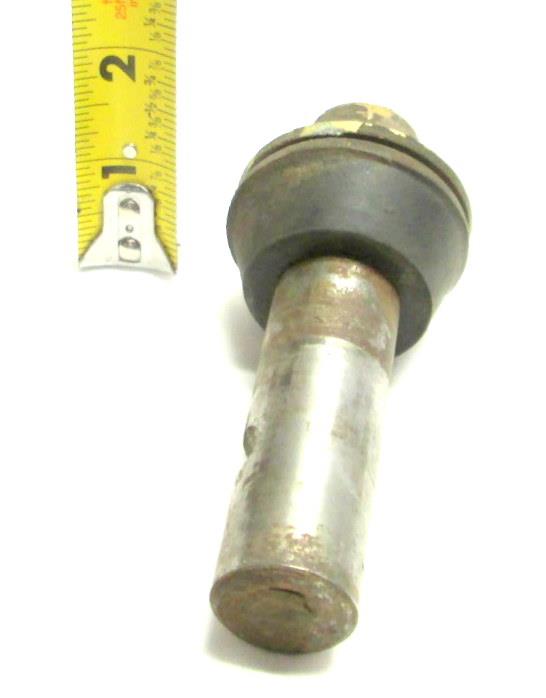

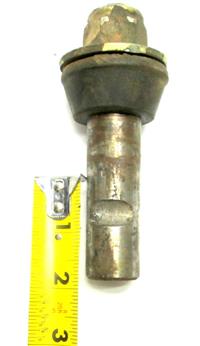

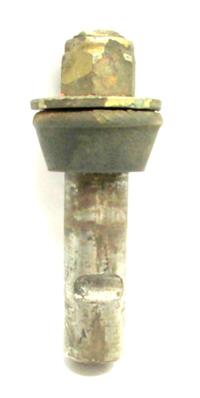

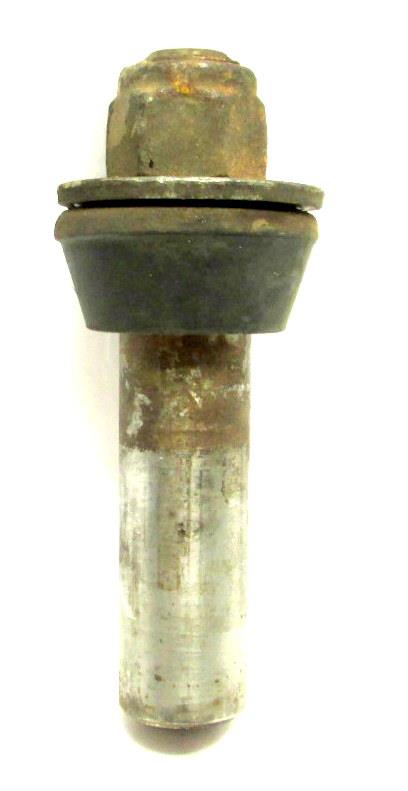

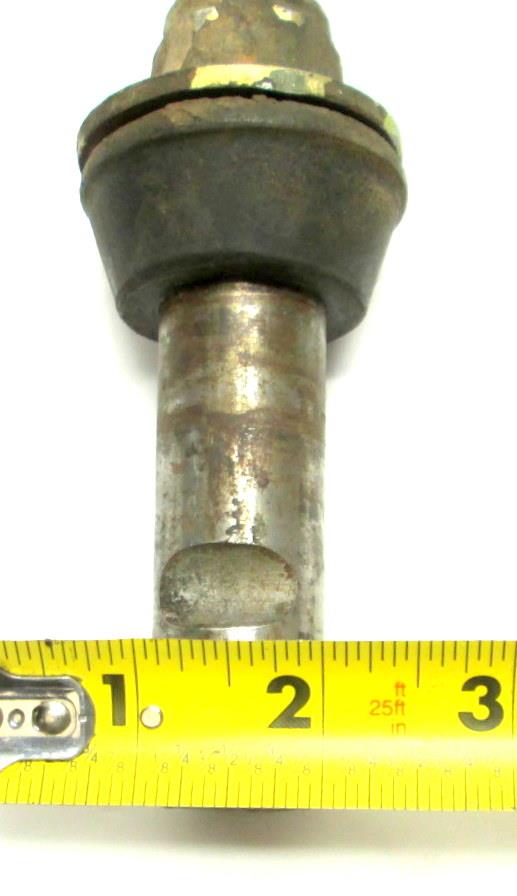

Mount Shock Absorber Headless Shoulder Pin Assembly M54A2 M809 M939A1 M939A2
USED RUST SHOWN
- 1ST End Style Chamfered
- Thread Class
- Thread Direction Right Hand
- Thread Length 0.931 IN
- Shank Length 1.125 IN
- Shoulder Diameter 0.998 IN MIN 1.000 IN MAX
- Shank Diameter 0.750 IN
- Overall Length 5.000 IN
- 1ST End Taper Length 0.062 IN MIN 0.094 IN MAX
- Thread Size 0.750 IN
- First End Location is Shoulder End
- First End Taper Angle 45.0 Degrees
- Steel

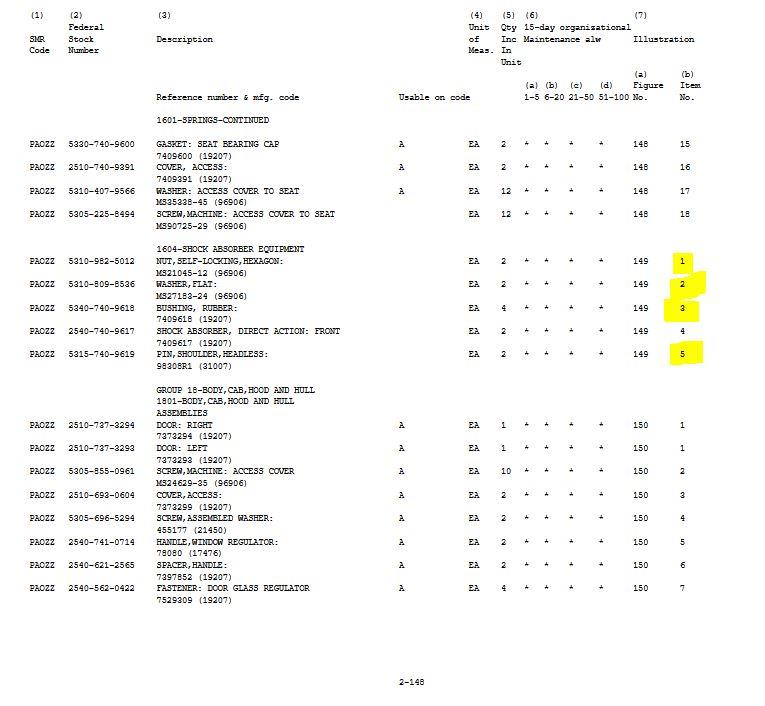

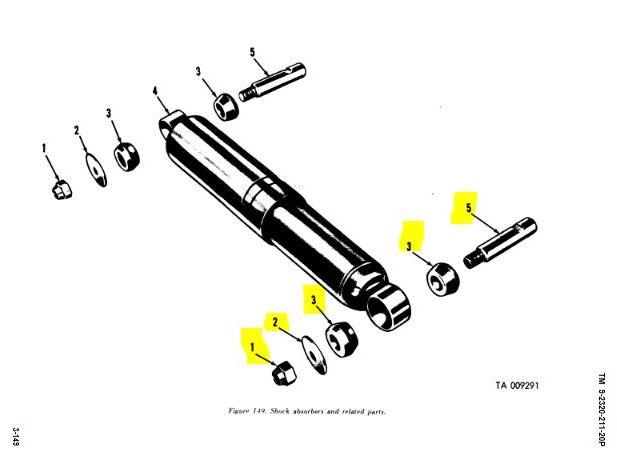

- Items 1,2,3 & 5 in Diagram
Click Here For Upper Shock Absorber Mount M54A2 M809 M939A1 M939A2
Click Here for Headless Shoulder Pin for Mount Shock Absorber M814 M818 M939 M939A1 M939A2 M54
Fits: 5 Ton 6x6 Military Truck
M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
