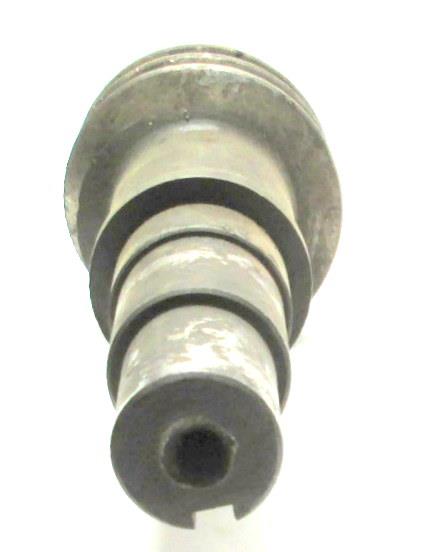

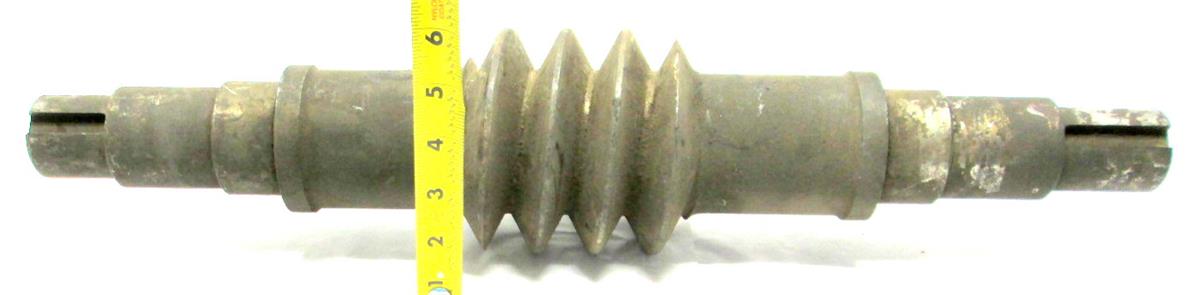

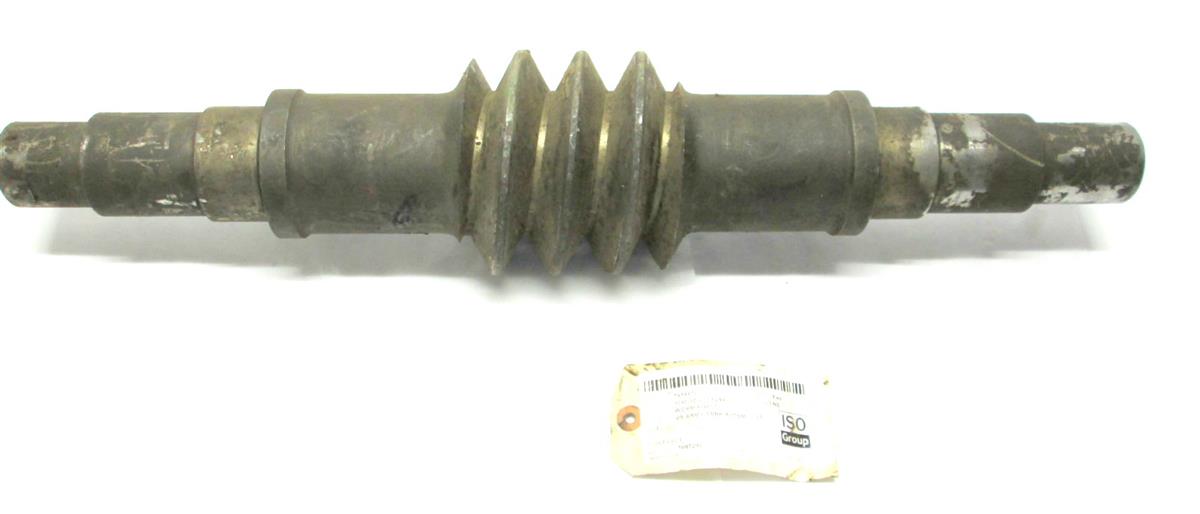

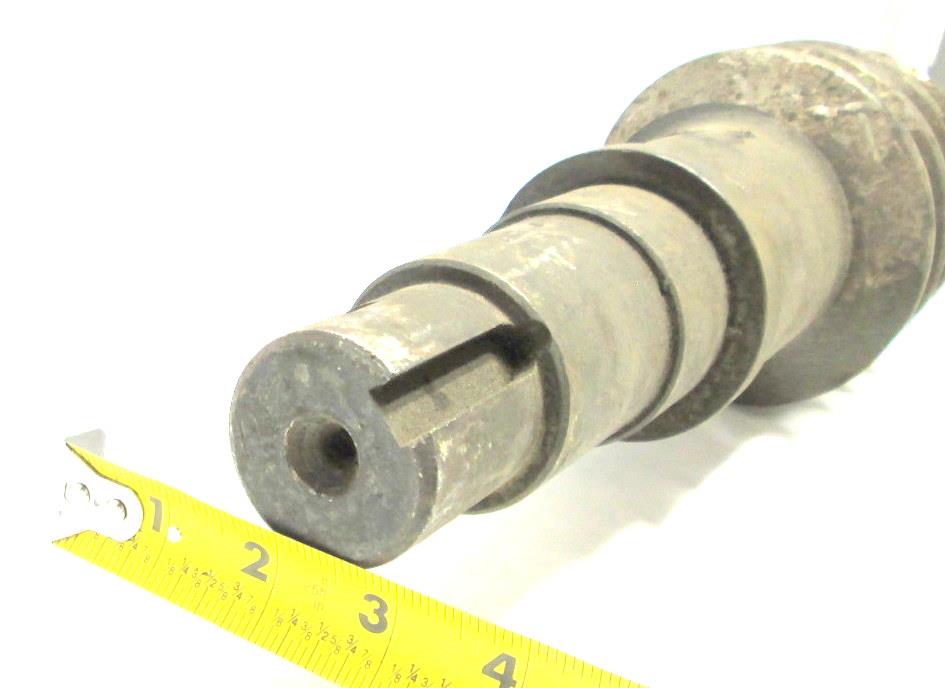

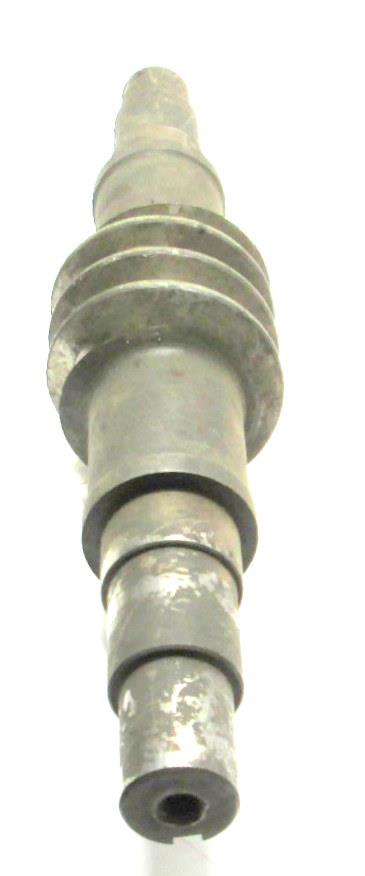

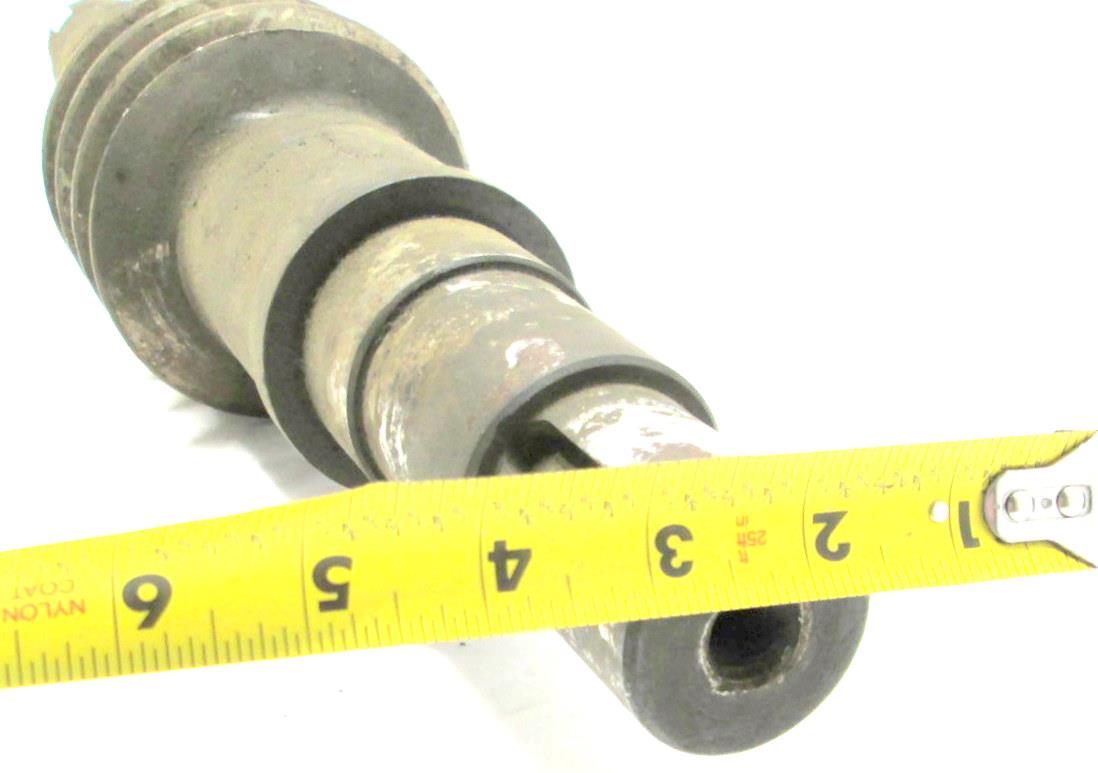

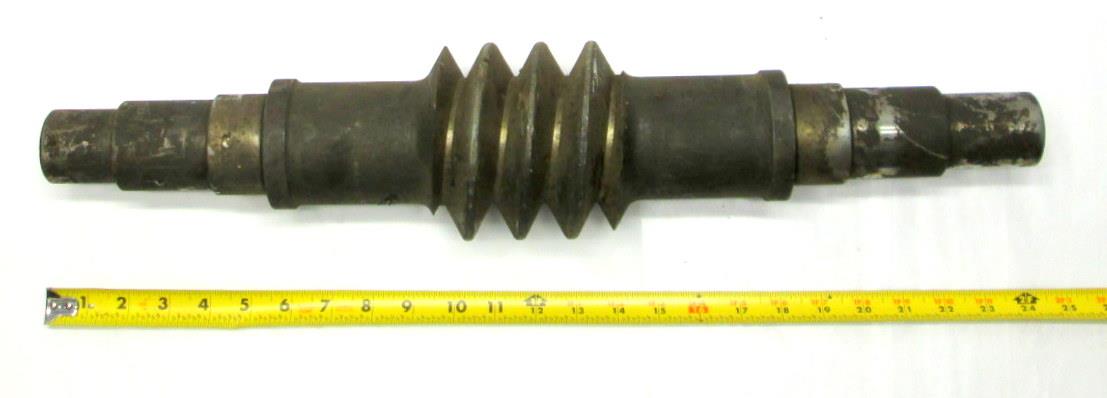

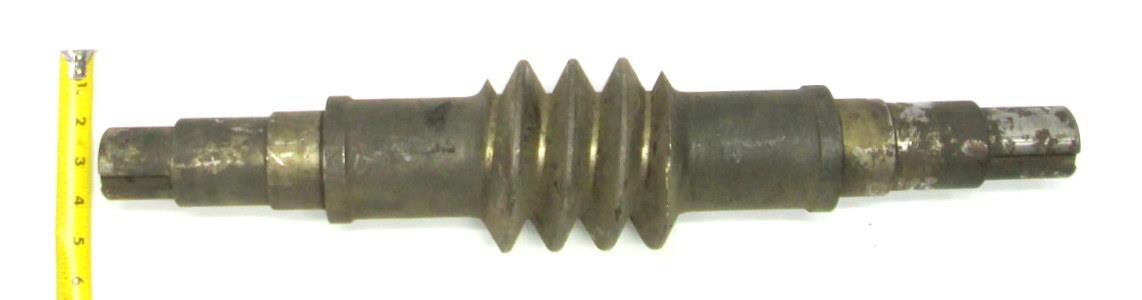

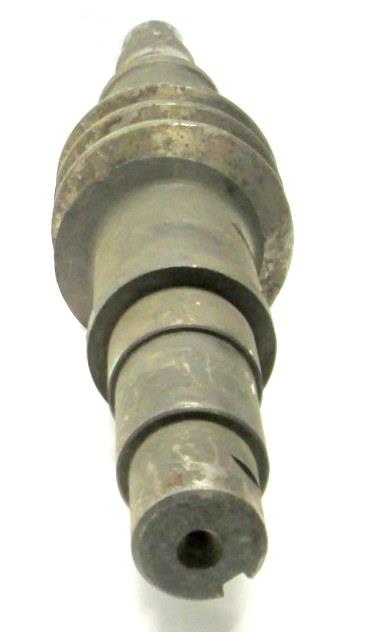

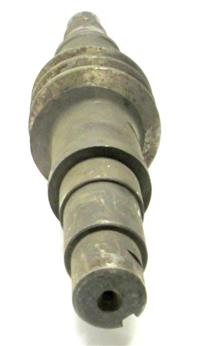

Front Winch Worm Shaft 20,000 Lb. Garwood M54A2 M809 M939A1 M939A2
- Length 17.594 inches
- Teeth Hardness Rating C Scale 58 to 63
- Worm Thread Qty 1
- Worm Thread Lead 0.875 IN
- Thread Direction Left-Hand
- Worm Pressure Angle in Degrees 27.500
- Worm Helix Angle 4 DEG 57 MIN
- Worm Outside Diameter 3.774 IN MIN 3.776 IN MAX
- Worm Pitch Diameter 3.216 IN
- Shaft Hardness Rating C Scale 17 to 35

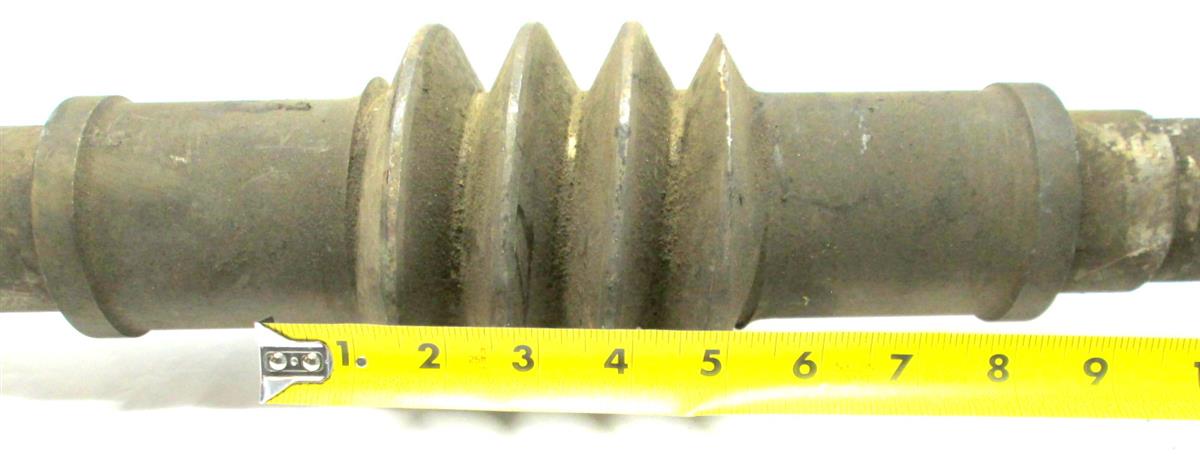

- Worm Thread Section Length 3.750 IN
- Worm Body Length 11.066 IN MIN 11.076 IN MAX
- Shaft Location Both End of Worm

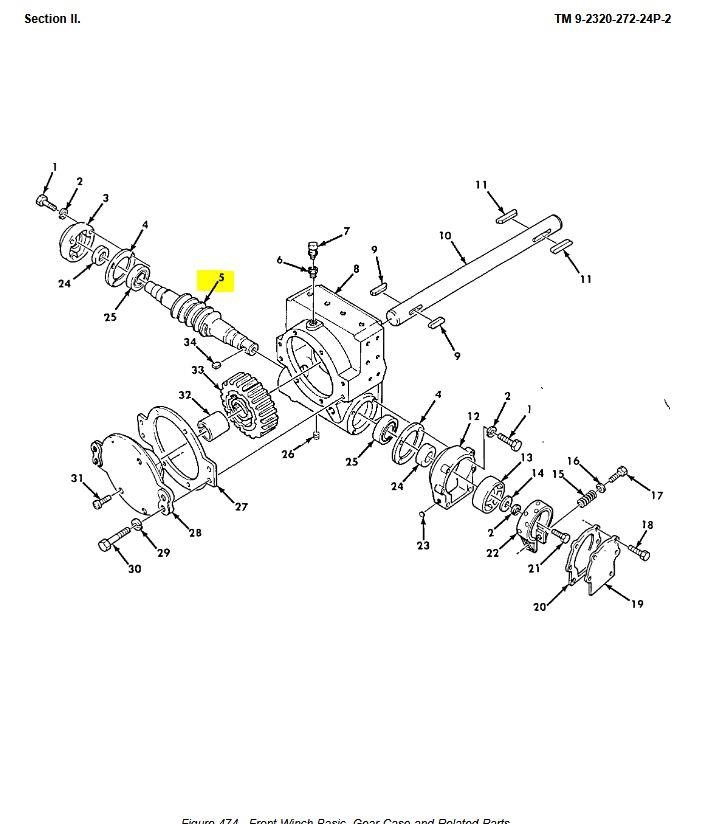

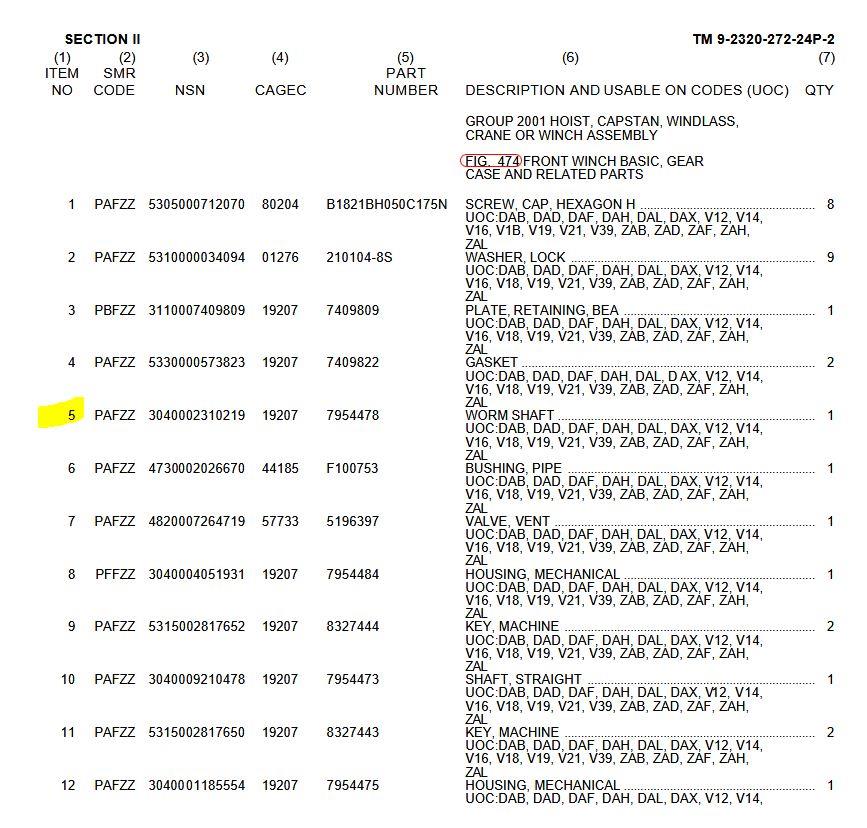

- Item NO 5 in Diagram
Fits: 5 Ton 6x6 Military Truck
M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
