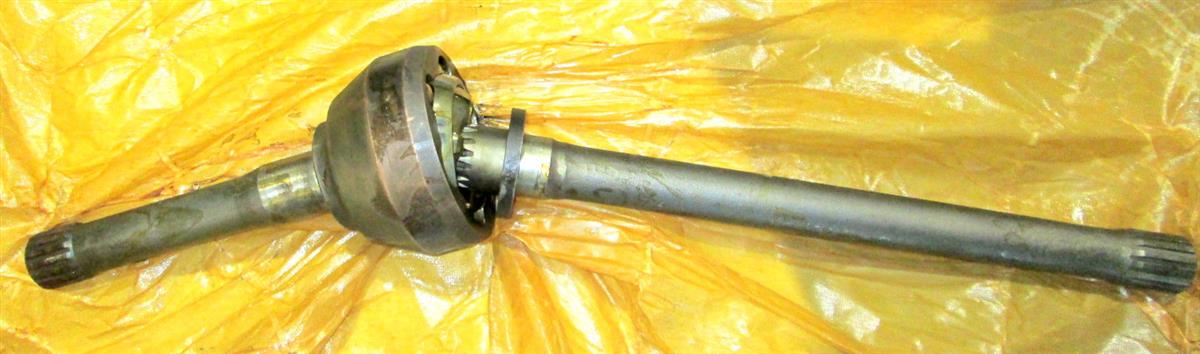

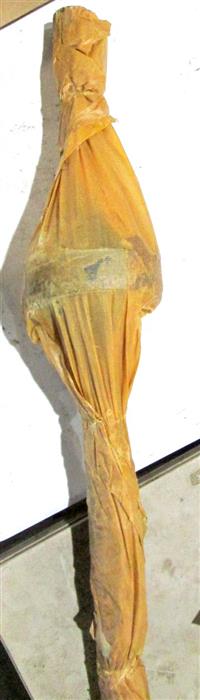

Left Front Steering Axle Short Rzeppa Shaft M809 M54 M939A1
- Length 34.688 IN
- Metallic Hardness Rating 39.0 MIN Rockwell C and 43.0 MAX Rockwell C
- First End Spline Length 2.719 IN
- First End Spline Minor Diameter 1.949 IN MIN 1.961 IN MAX
- First End Spline Major Diameter 2.122 In MIN 2.127 IN MAX
- First End Bearing Seat Diameter 2.125 IN MIN 2.127 IN MAX
- Second End Spline Length 2.000 IN
- Second Spline Minor Diameter 1.949 IN MIN 1.961 IN MAX
- Second End Spline Major Diameter 2.122 In MIN 2.127 IN MAX
- First and Second End Spline QTY 16
- First End Facility Diameter 1.695 IN MIN 1.700 IN MAX
- First End Engaging/Locking/ Positioning Facility Locking Device Grooved
- First End Facility Width 0.156 IN
- First End Facility Location 0.375 IN from Shaft End
- First End Bearing Seat Included
- First End Bearing Seat Width 0.942 IN MIN 0.952 IN MAX
- First and Second End Spline Type Straight
- Second End Bearing Seat Not Included
- Steel Comp 4150H
- Item NO 6 in Dia TM 9-2320-272-24P-1 M939
- Item NO 5 in Dia TM9-2320-260-20P M809
Click Here For Front Axle Shaft with Rzeppa Style U-Joint - Passenger Side
Click Here For Front Axle Shaft with Rzeppa Style U-Joint - Driver's Side
Click Here For Axle Shaft Right Front Passenger (Long) Side U-Joint Style Axle Shaft M54A2 M809 M939A1 M939A2
Click Here For Axle Shaft Left Front Driver (Short) Side Ball & Fork Style Axle Shaft M54A2 M809 M939A1 M939A2
Click Here For Axle Shaft Right Front Passenger ( Long ) Side Ball & Fork Style Axle Shaft Rockwell Axle 5 Ton
Click Here For Propeller Drive Shaft Transfer Case to Middle Rear Axle M54 M809 M939
Fits: 5 Ton 6x6 Military Truck
M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
