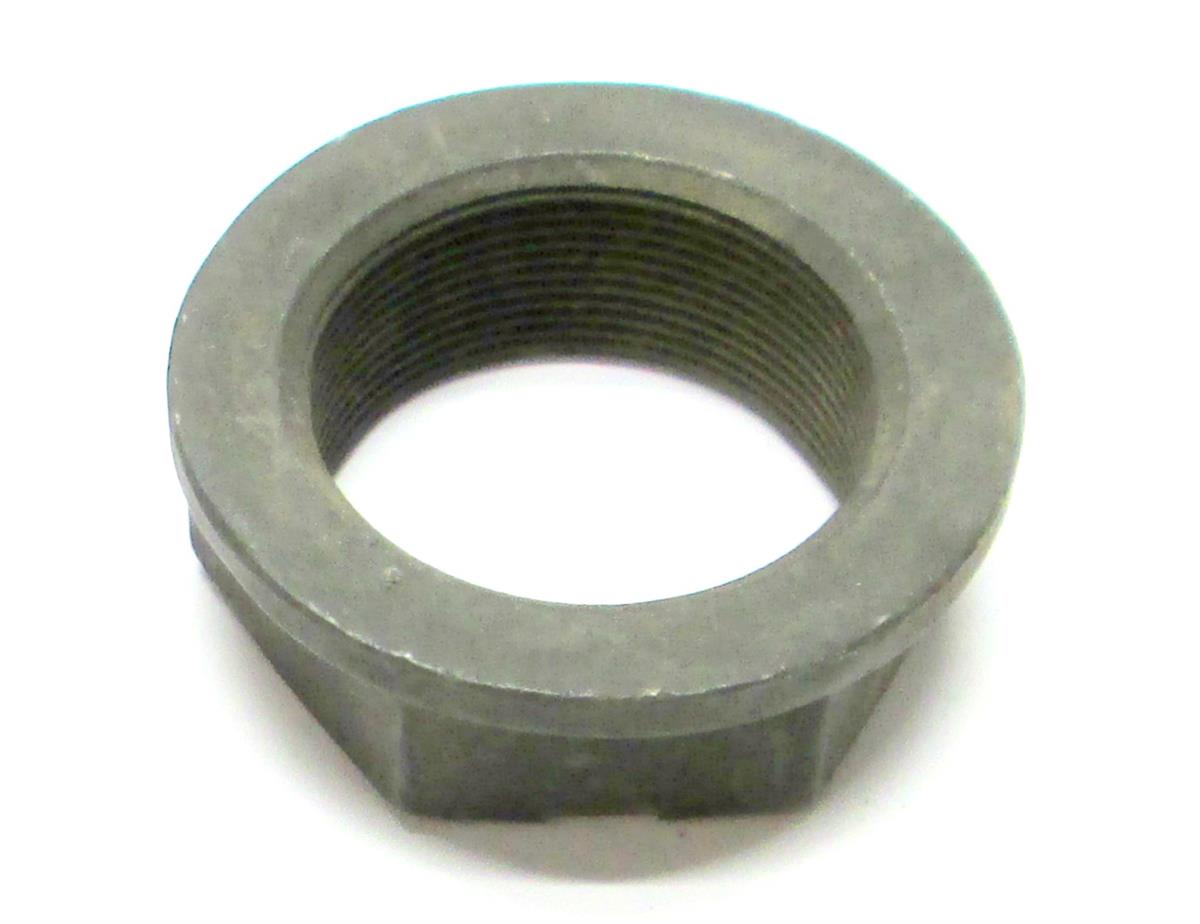

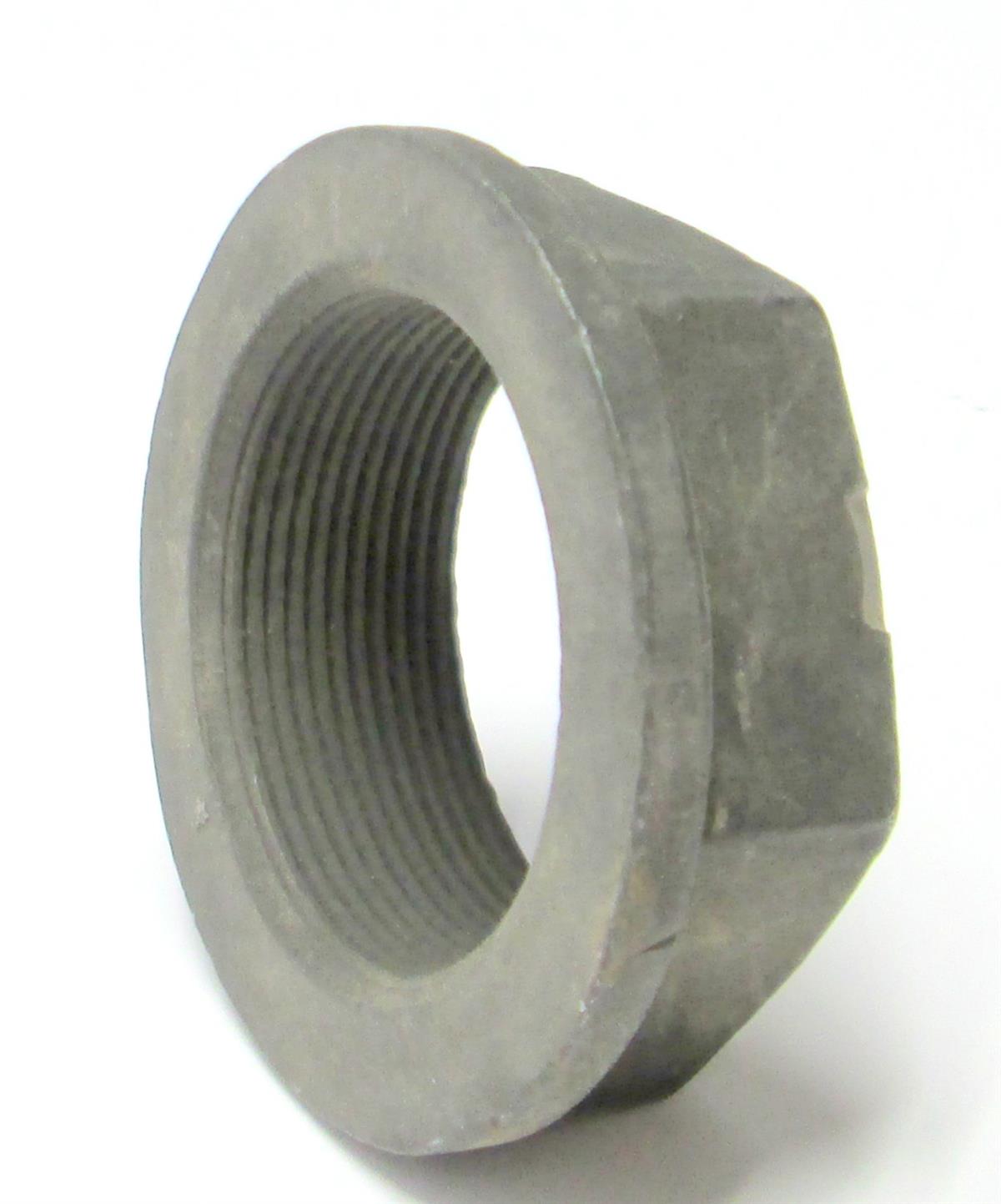

Front and Rear Differential Hexagon Pinion Nut M35A1 M35A2 M35A3
Thread Class 2B
Thread Direction Right Hand
Nut Style Slotted Hexagon

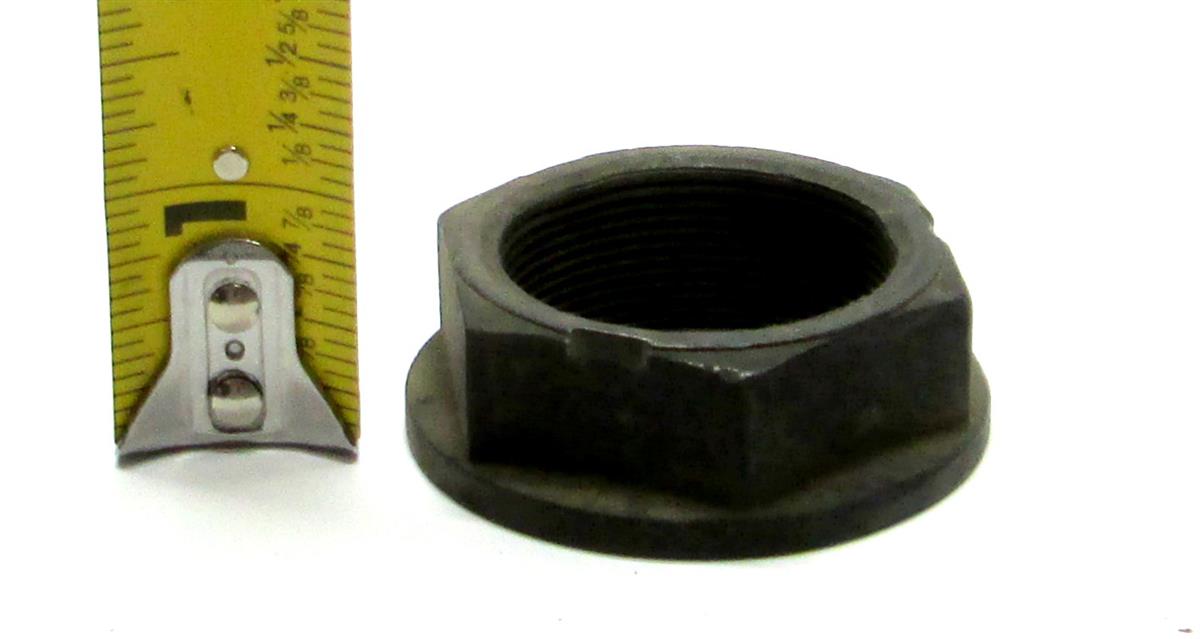

Nut Height 0.552 IN Min 0.572 IN Max

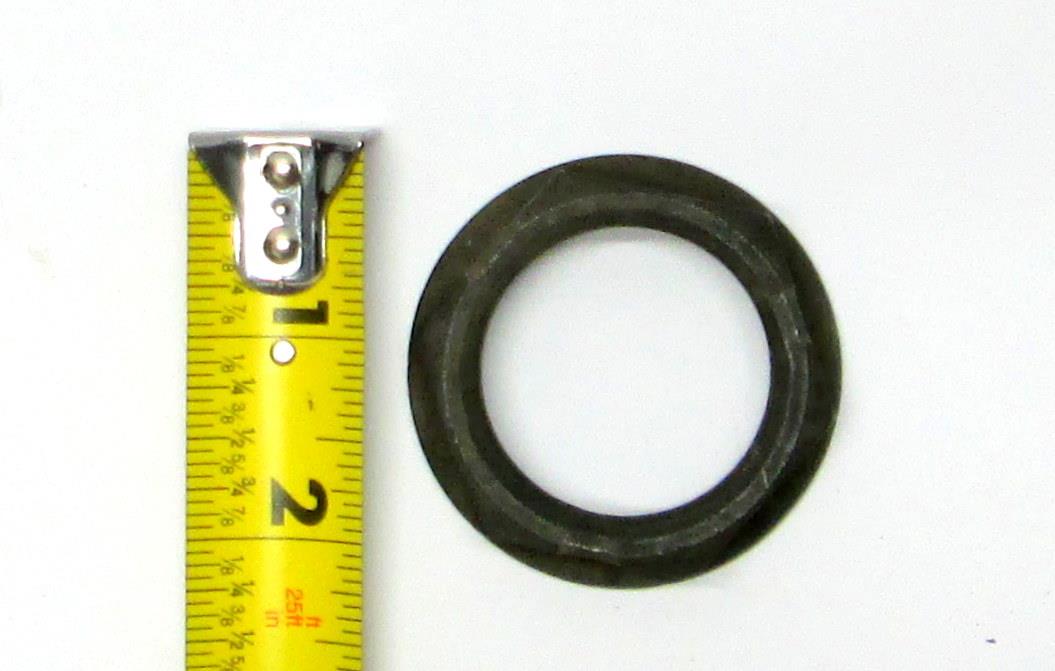

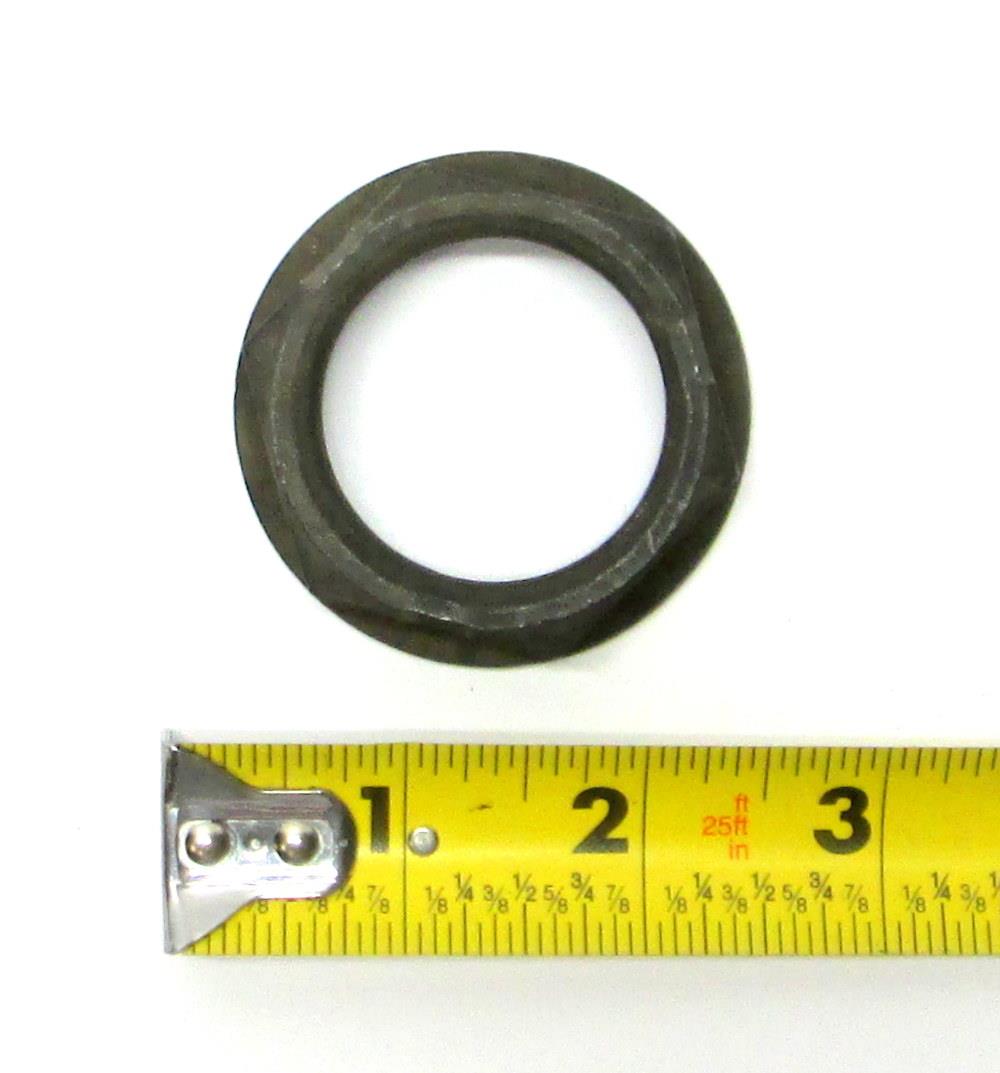

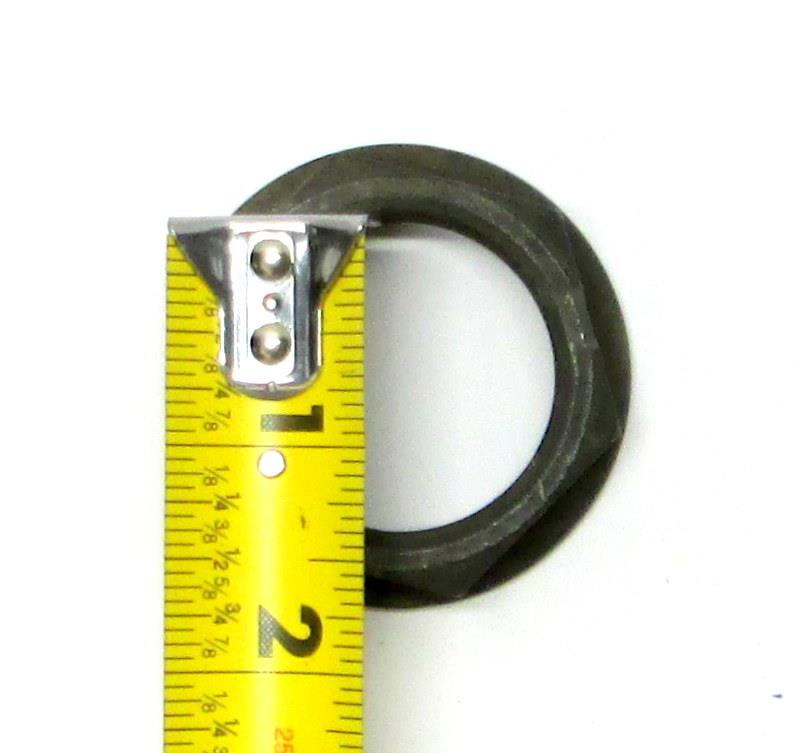

Width Across Flats 1.479 IN Min 1.500 IN Max
Thread QTY per Inch 20
Countersink Angle 89.0 Degrees Min 91.0 Degrees Max
Bearing Surface Type Washer Faced
Surface Material Steel Comp
Surface Treatment Zinc Overall

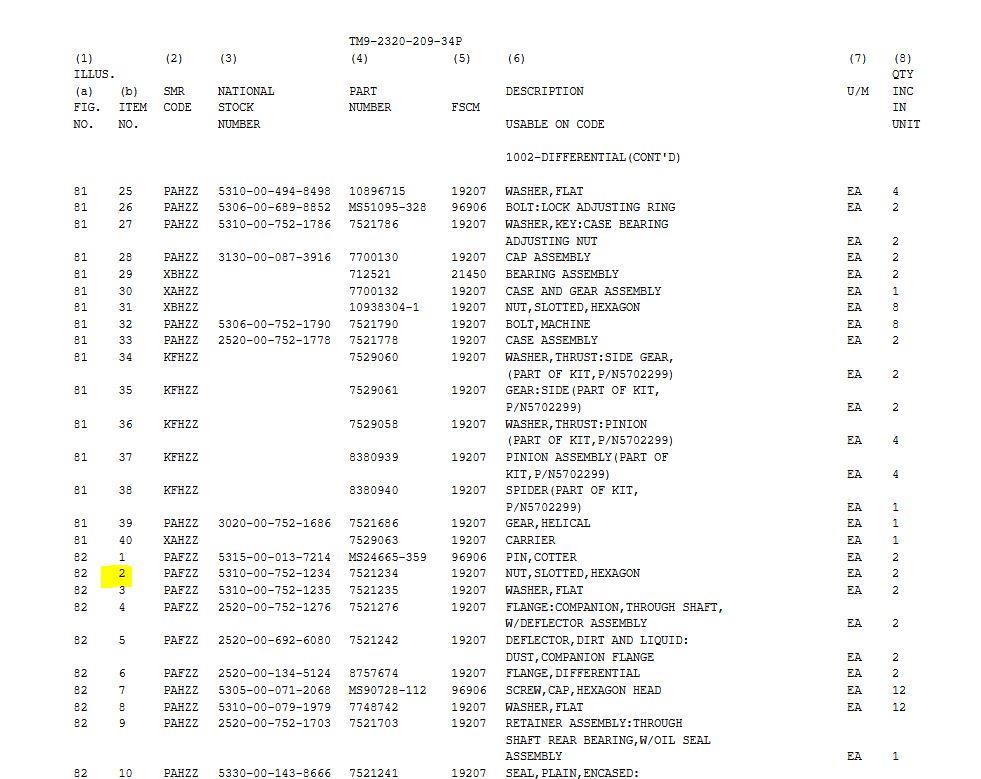

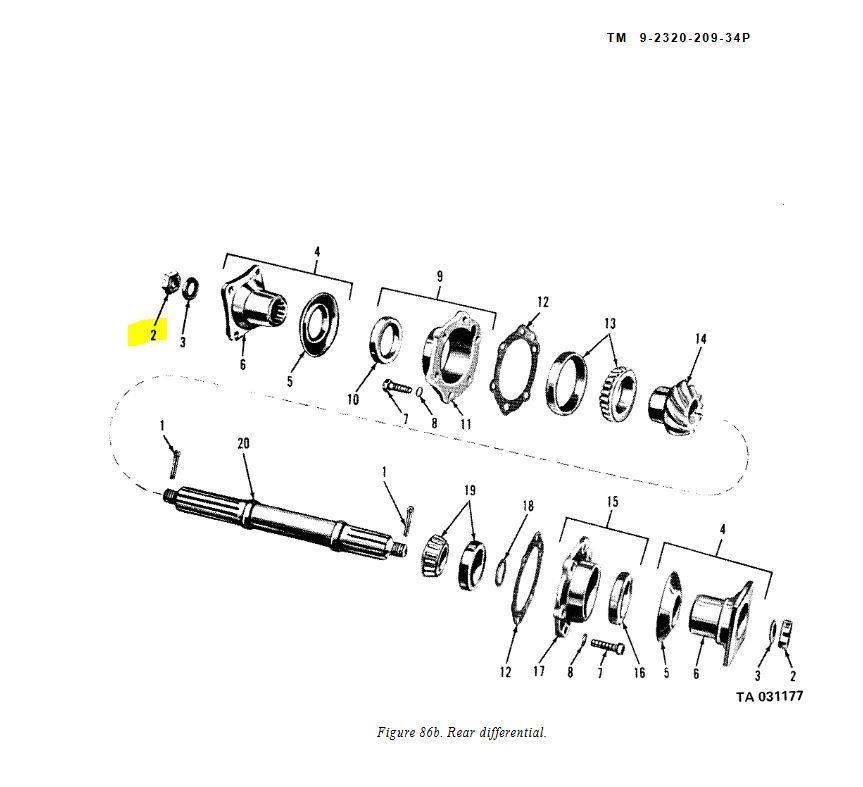

Item NO 2 in Diagram TM 9-2320-209-34P

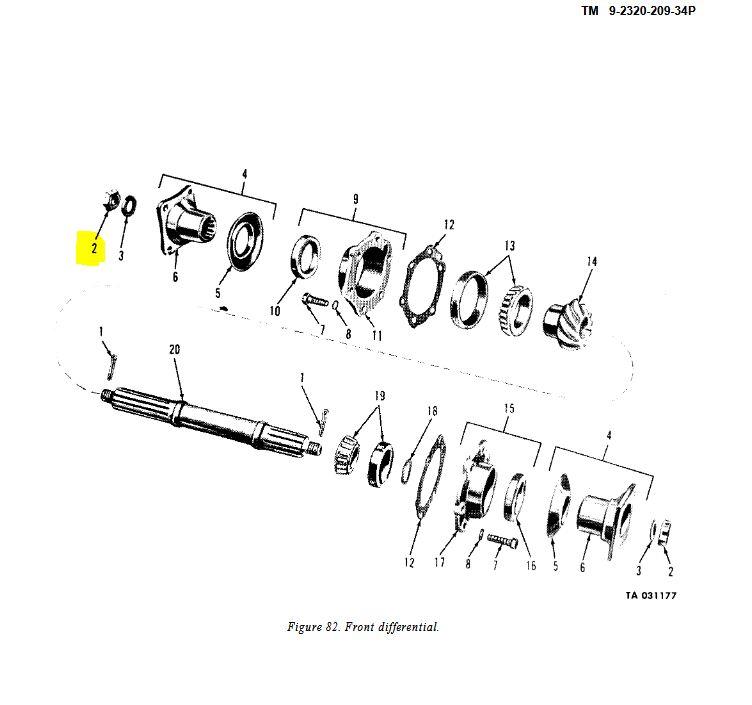

Item NO 2 in Diagram TM 9-2320-209-34P
Fits: Deuce and a Half 6x6 Military Truck
M35, M35A1, M35A2, M35A3, M36, M36A1, M36A2, M36A3, M275, M109, M109A1, M109A3, M109A4 2 ½ Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
