5T-2073 | Radiator Shield and Plate Assembly Kit Right Passenger Side M%4A2 M809 M939

$15.00

NSN #:

2510-00-405-1975

Part #:

11611596

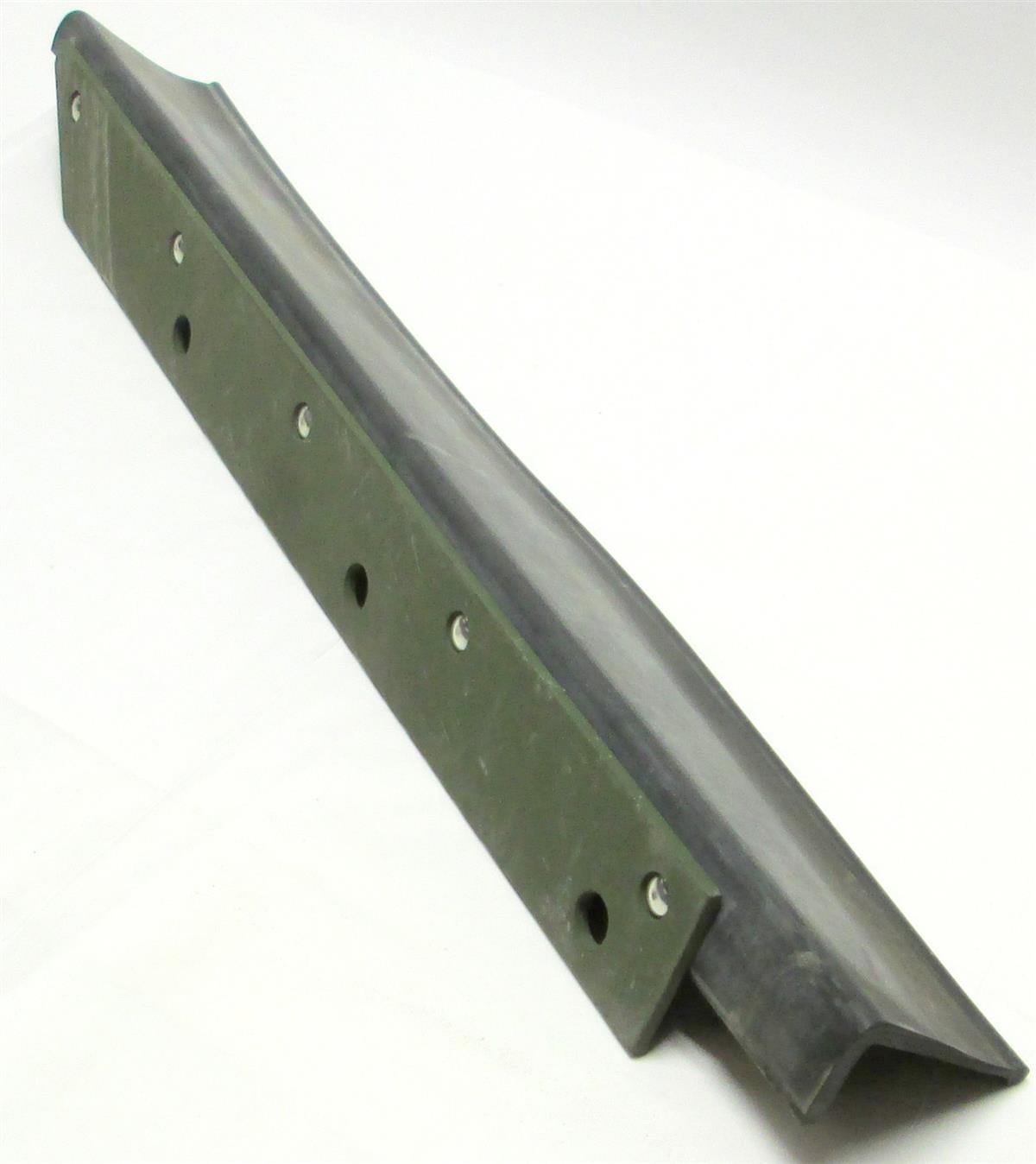

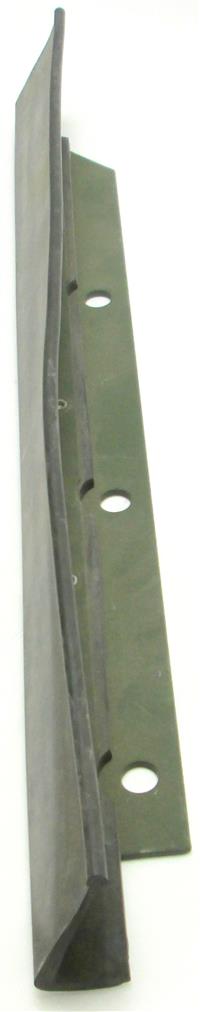

Right Passenger Radiator Shield and Plate Assembly 5 Ton

Strip: 5 Holes 0.203 IN Diameter, 0.438 In Height, 14.500 IN Length
Plate: 0.134 IN Thick, 1.562 IN Height, 14.875 In Length

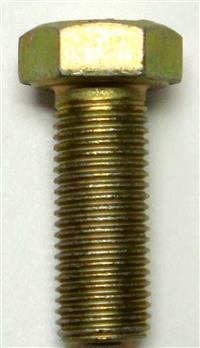

8 Pack Bolts: MS-90726-34
1 Pack Bolt - MS90726-60

Item No 24 in Diagram

All 5-ton (except FMTV) (M54, M809, M939A0, M939A1, M939A2)

M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks

Click Here For Right Passenger Side Radiator Shield Only, No Bracket or Bolts 5 Ton

Click Here For Left Driver Side Radiator Shield and Plate Assembly 5 Ton
