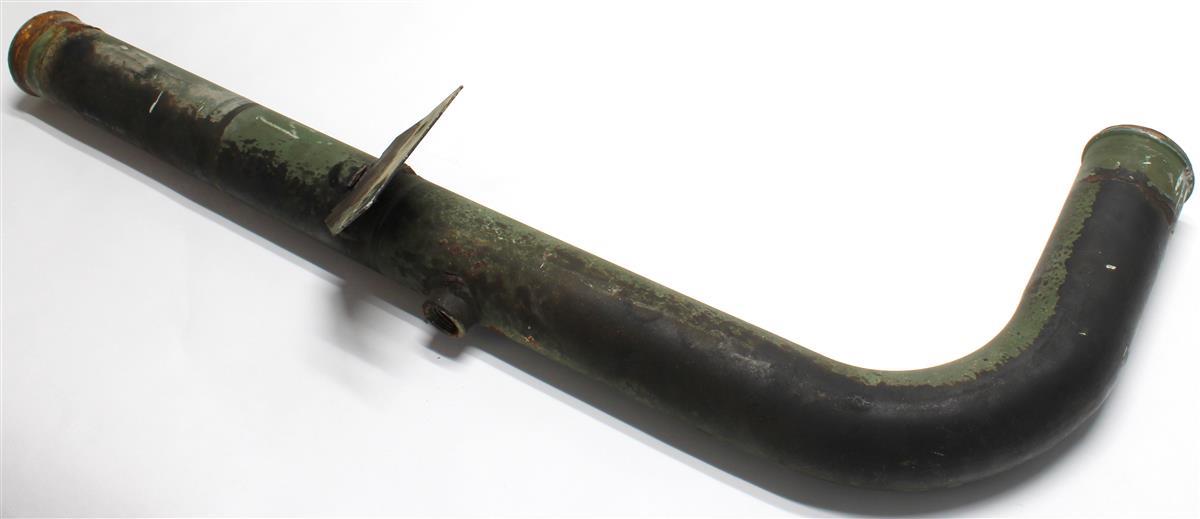

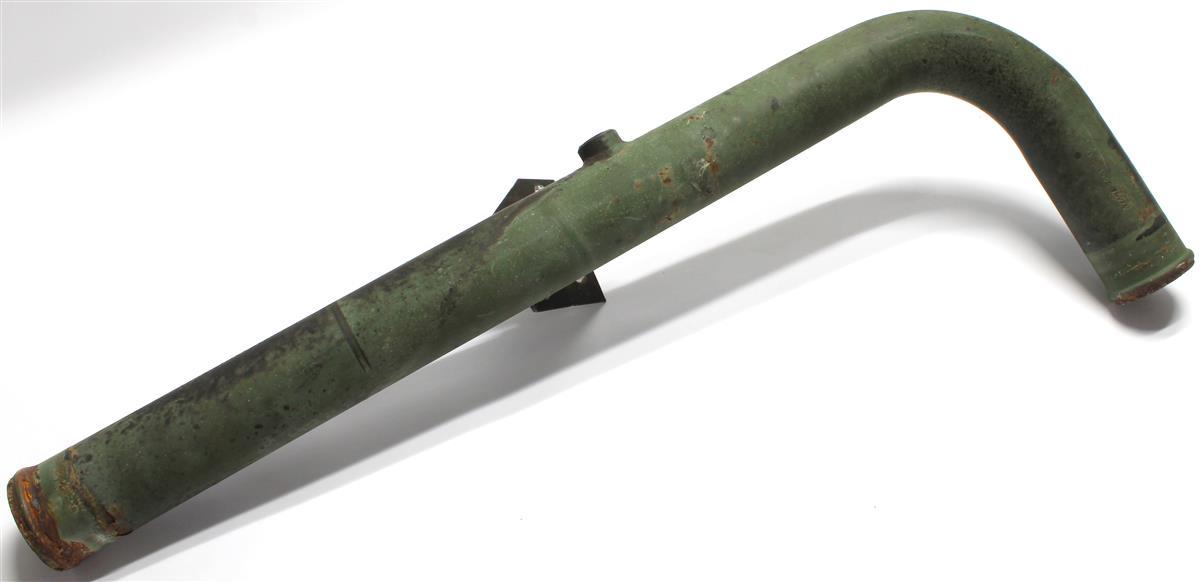

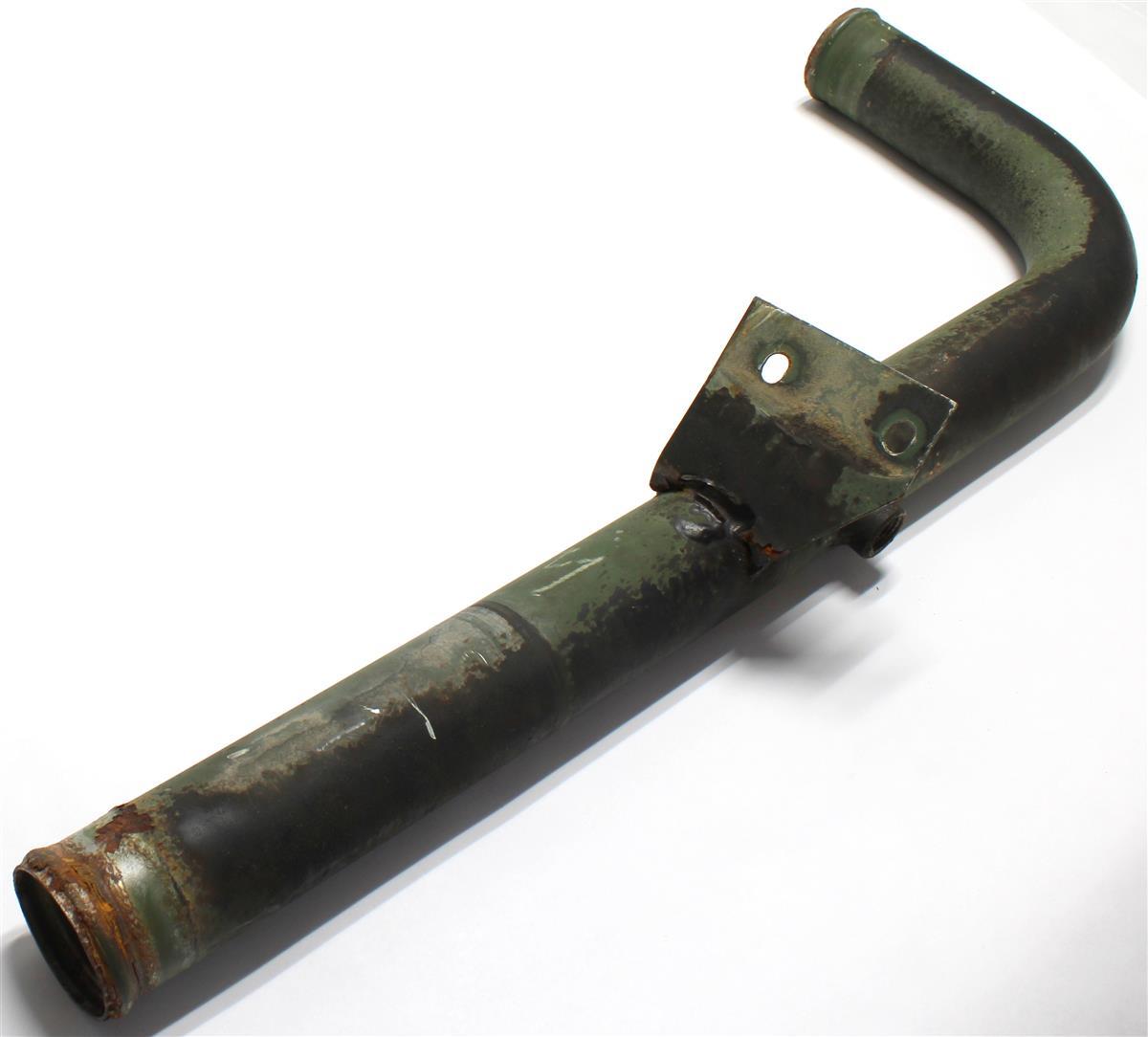

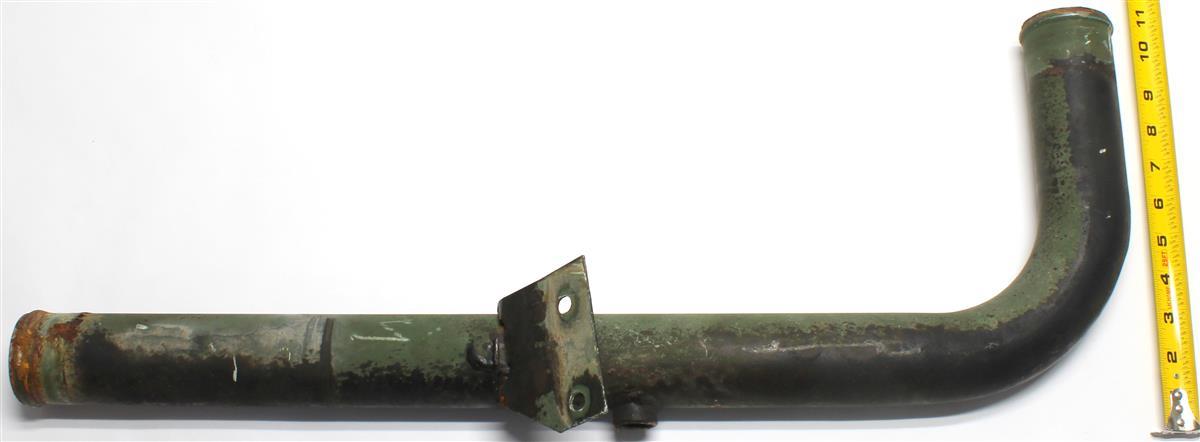

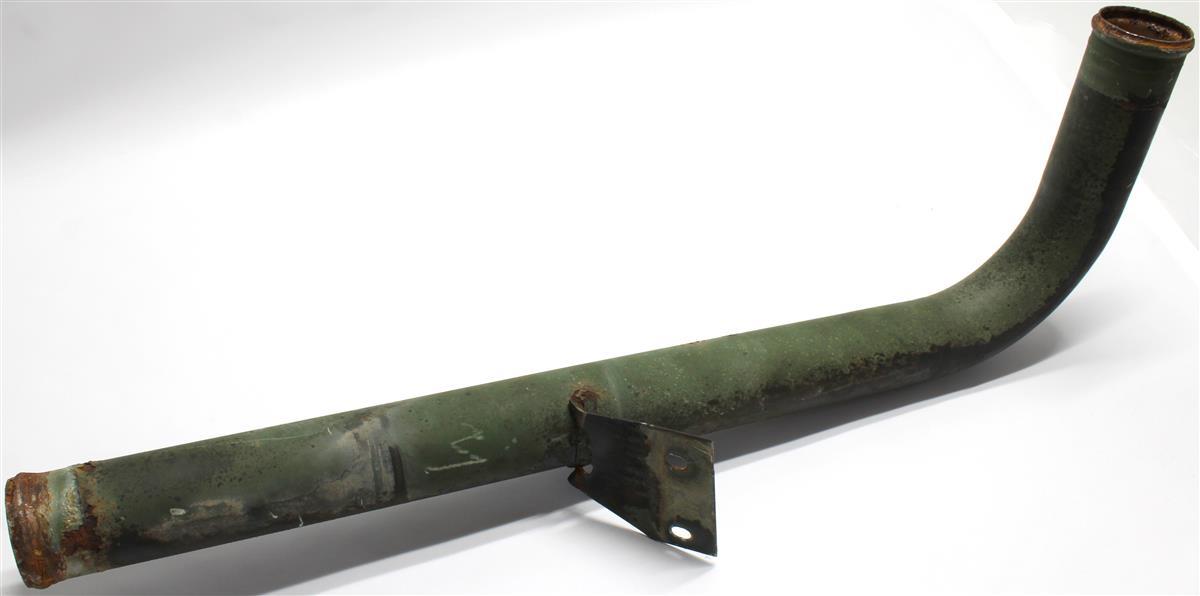

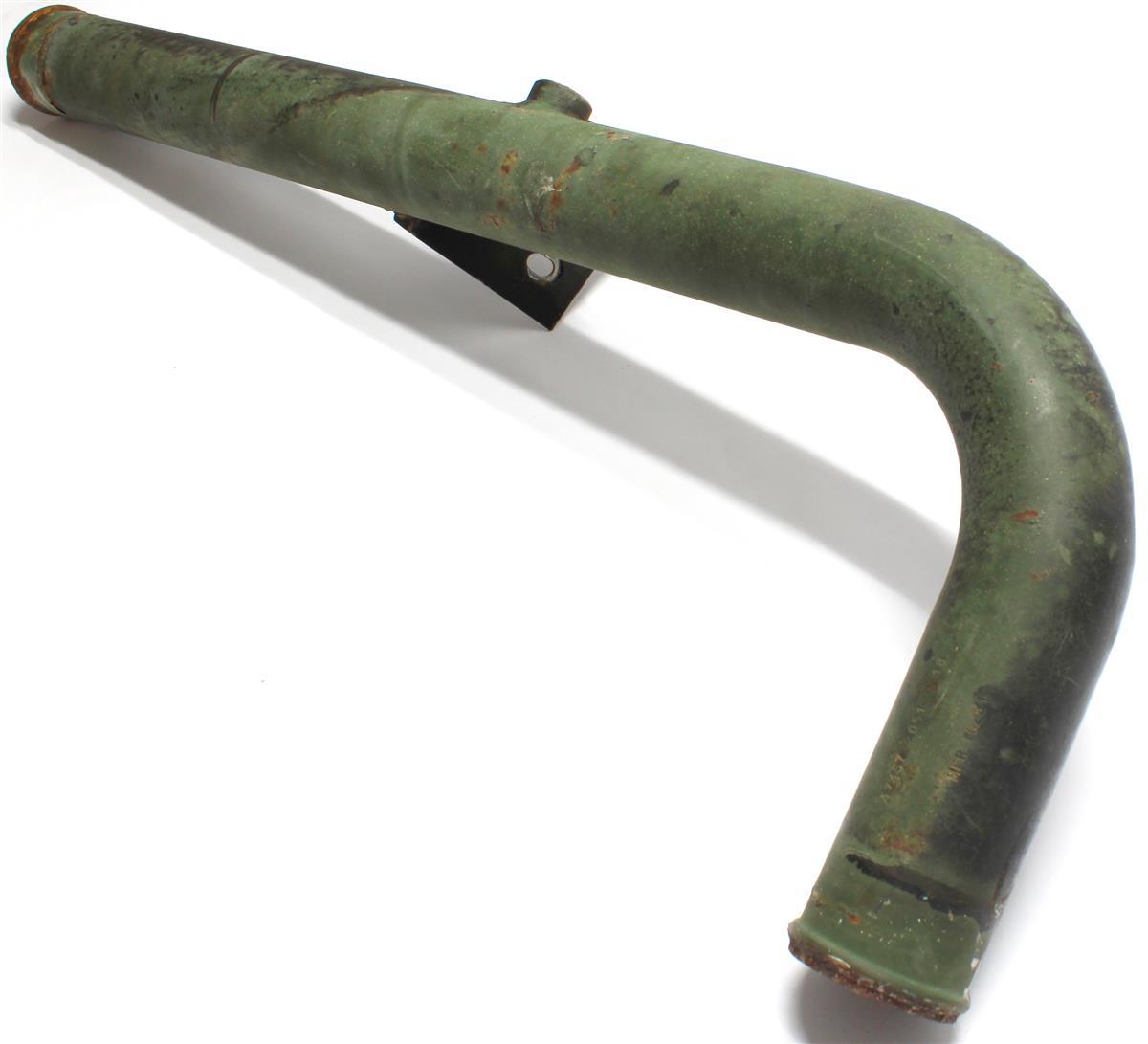

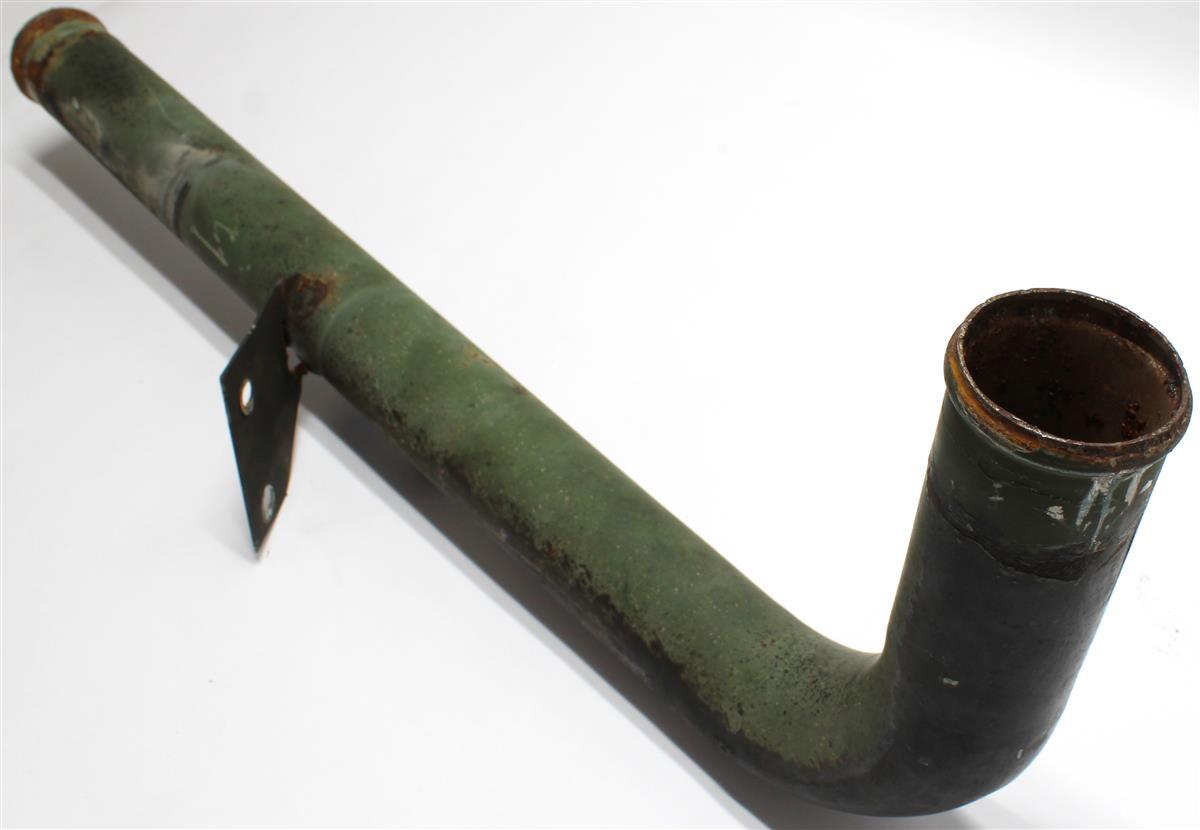

Metallic Tube for Surge Tank Line M939A2

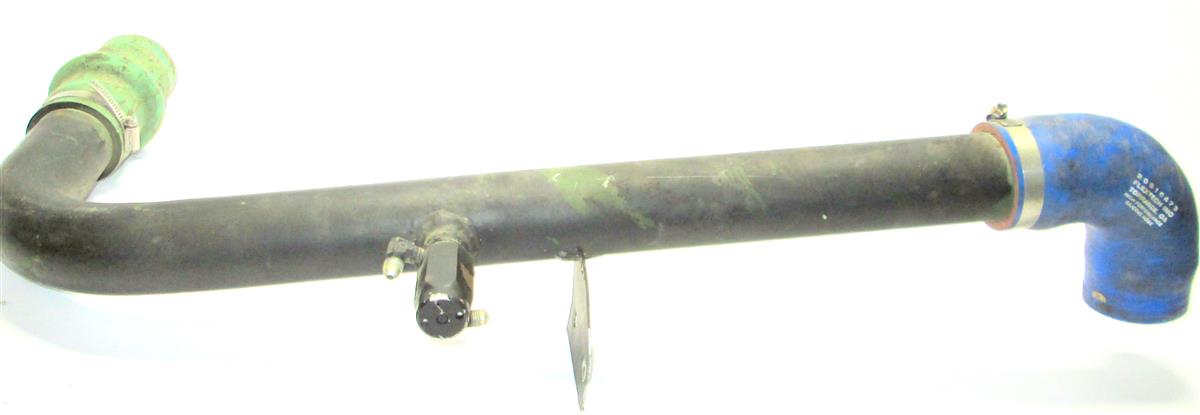

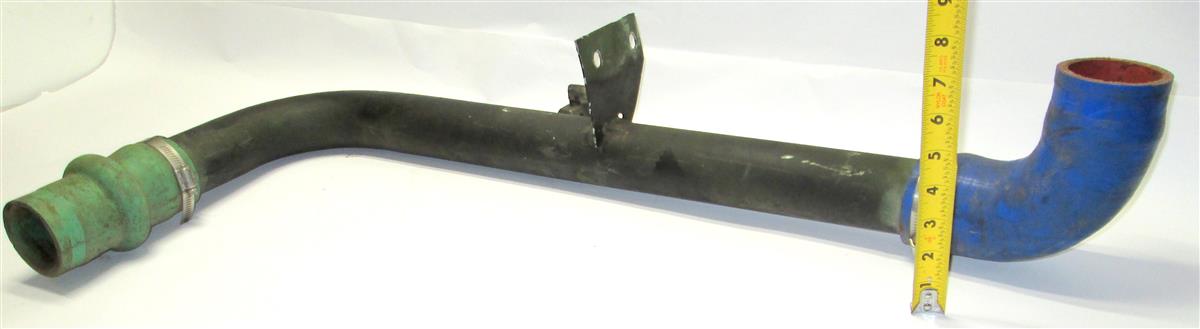

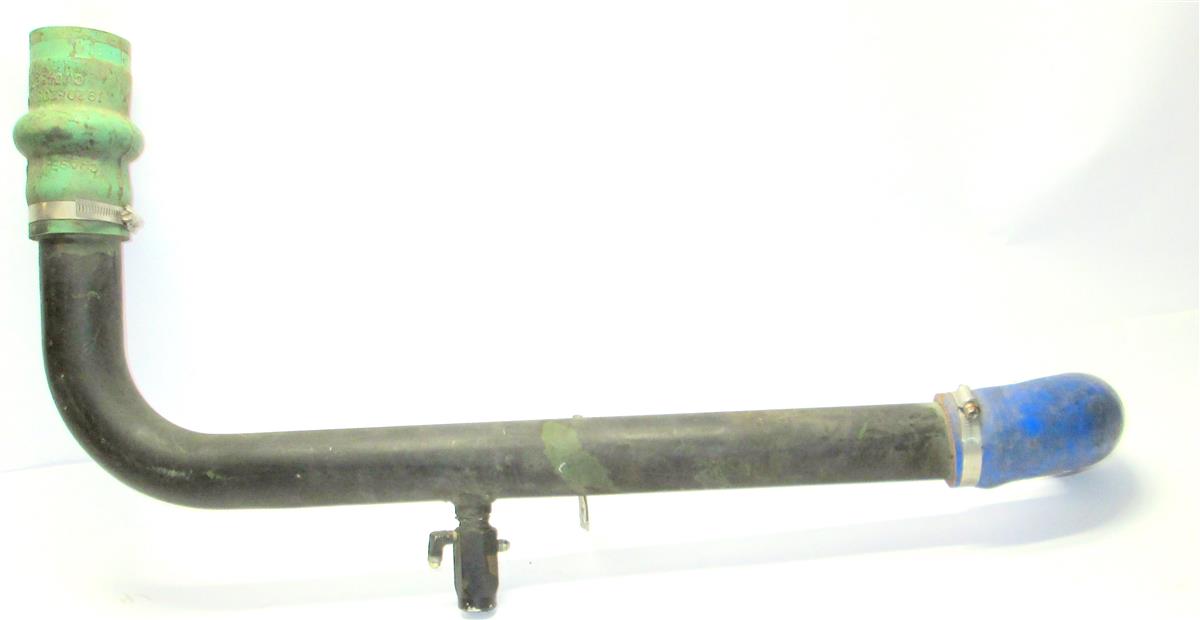

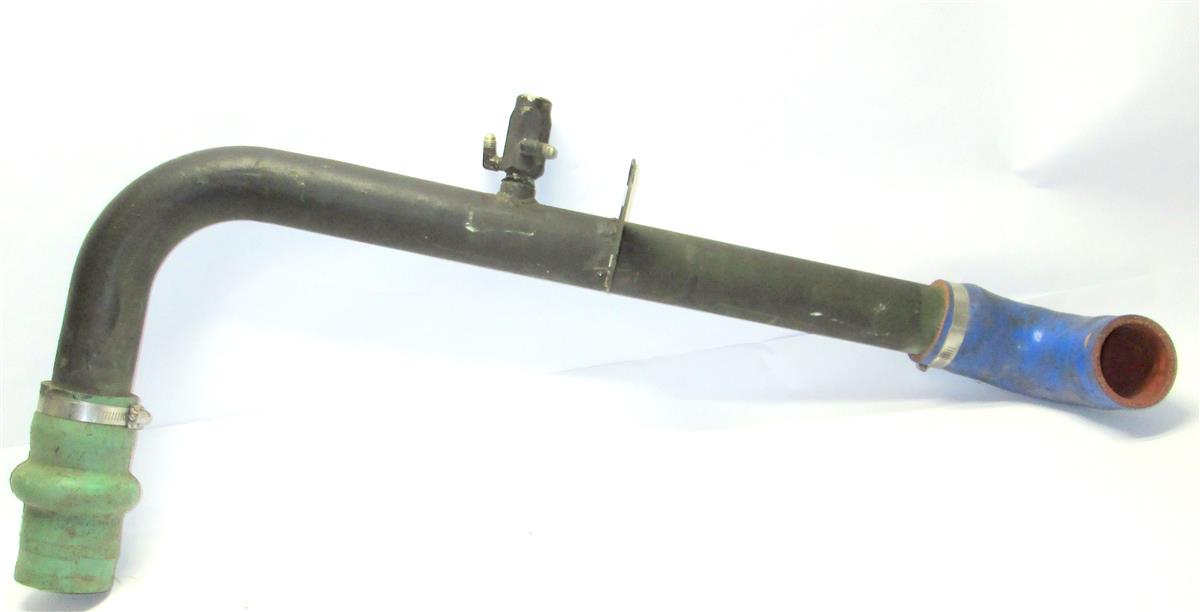

SHOWN WITH FITTINGS METAL TUBE ONLY- Hoses May or May not be included
Cross-Sectional Shape Size Plain Round
First and Second End Style Outside Beaded
First End Outside Diameter 2.500 IN
First End Bead Outside Diameter 2.620 IN
First End Bead Width 0.250 IN
First End Length from Bead Center to End 0.250 IN
Second End Outside Diameter 2.000 IN
Second End Bead Outside Diameter 2.180 IN
Second End Bead Width 0.240 IN
Second End Length from Bead Center to End 0.250 IN
Diameter 2.500 IN
Second End Relationship with First End Not Identical
Special Features Nipple 1.62 IN Height 0.625 IN Diameter Located in the Middle
Aluminum

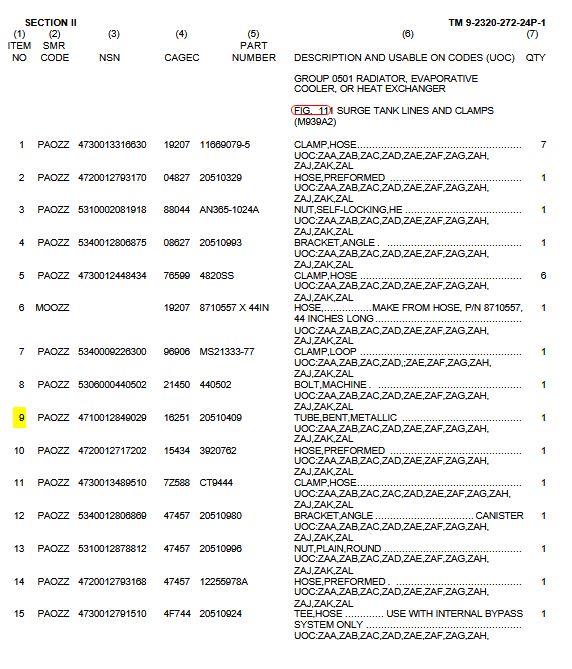

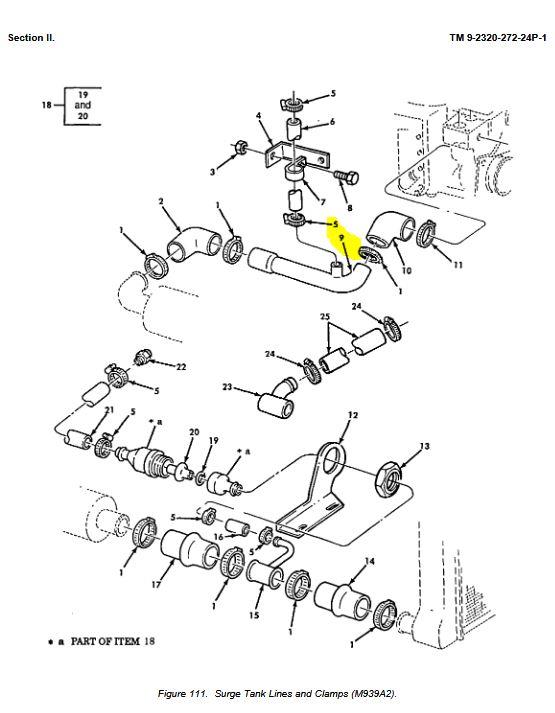

Item# 9 in Diagram
Fits: All M939A2 series 5-ton (8.3L turbo Cummins engine)
M939A2, M923A2, M925A2, M927A2, M934A2, M931A2, M942A2 Series 5-Ton Trucks
