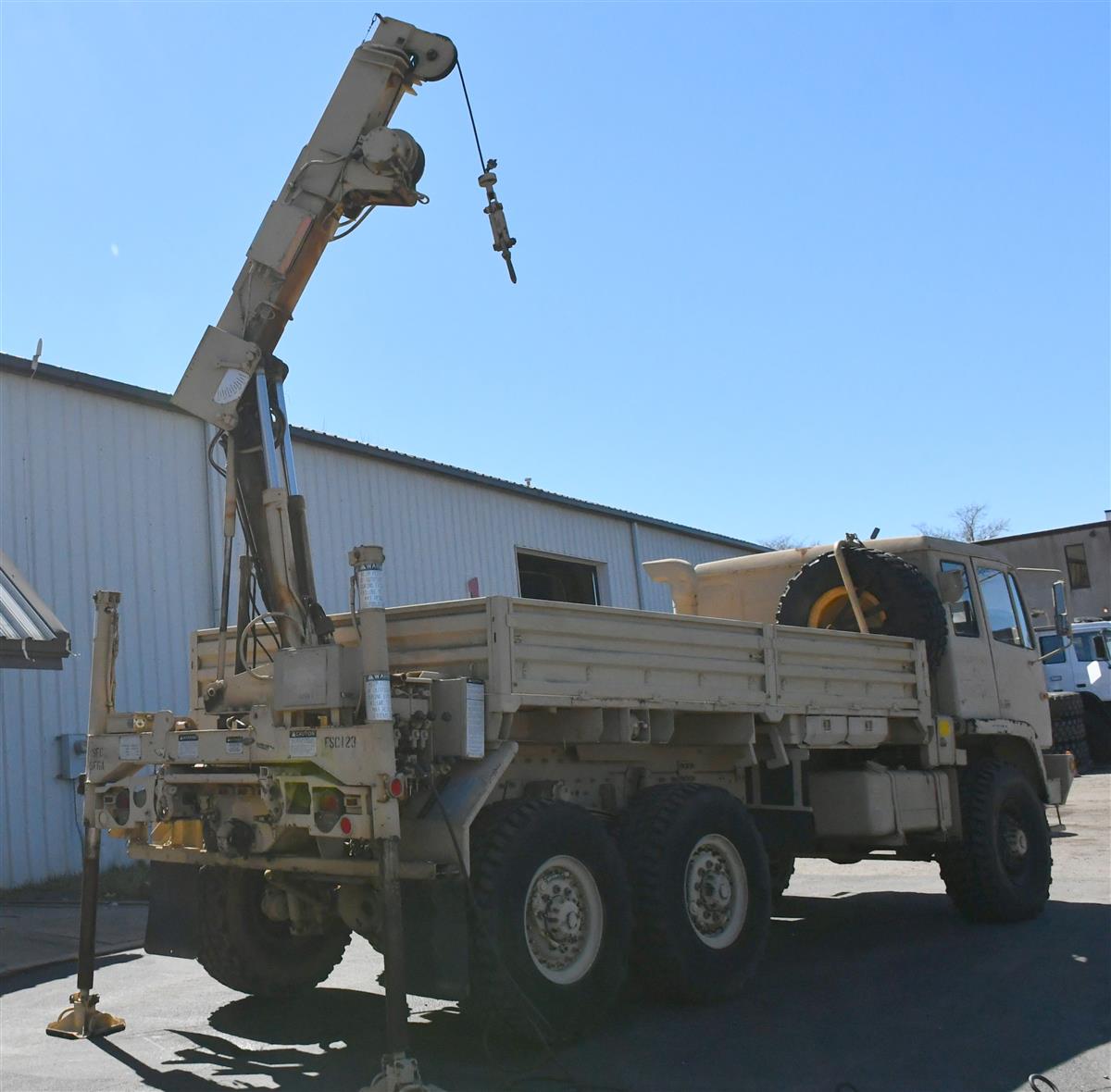

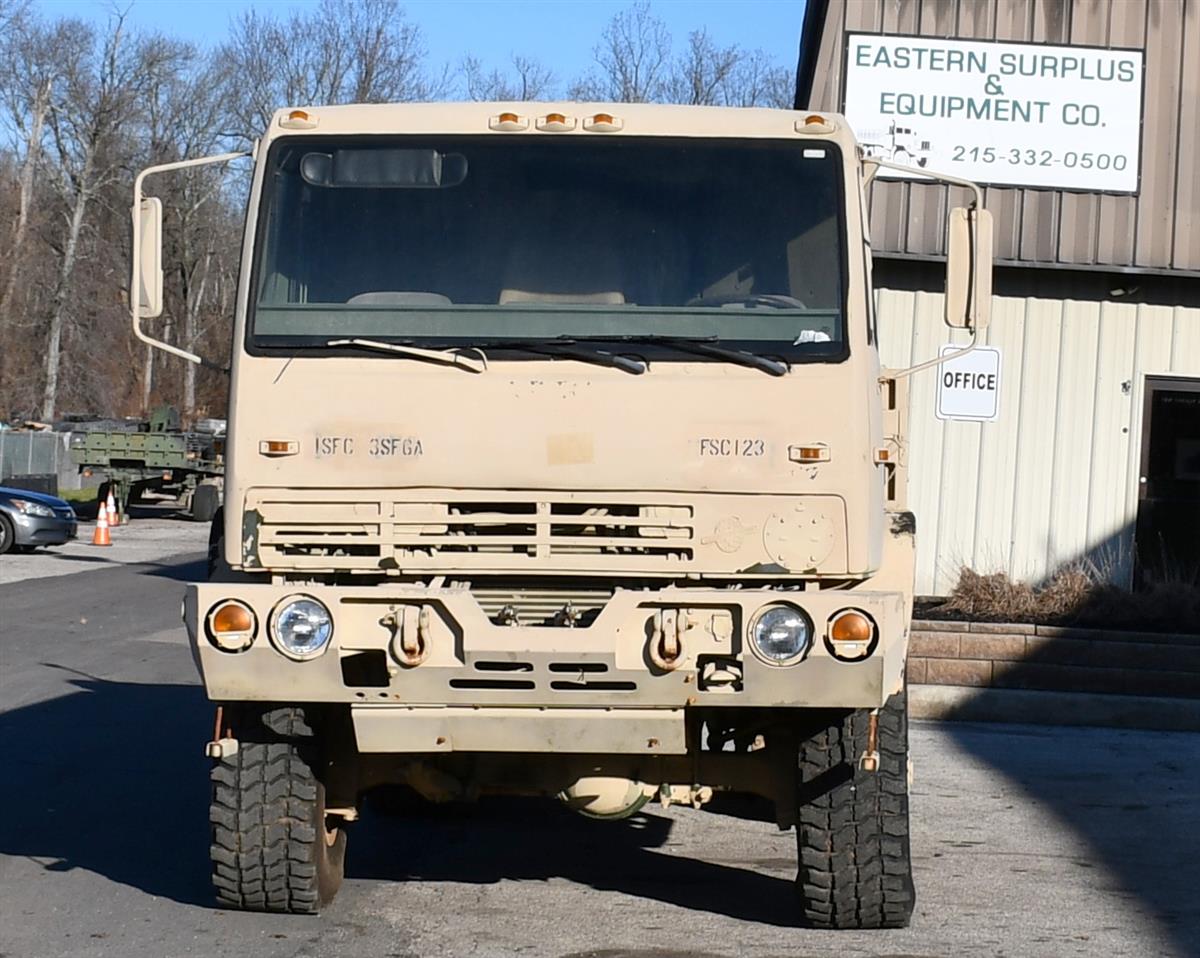

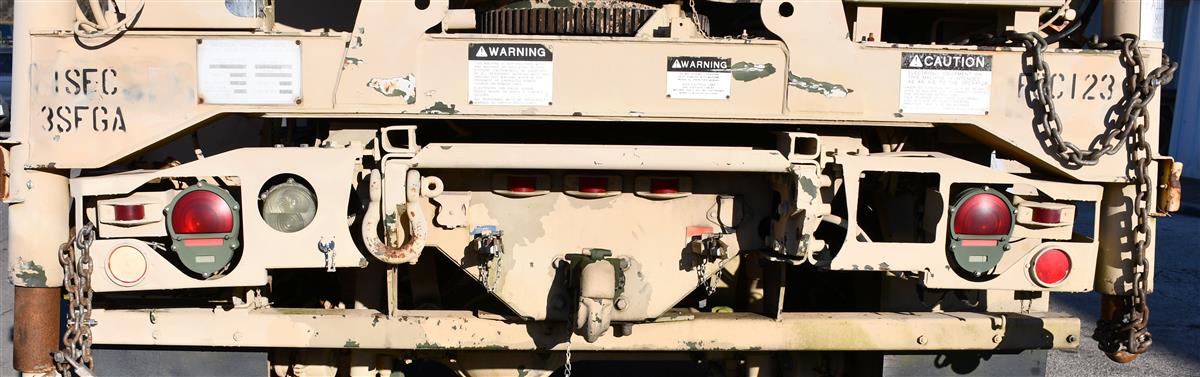

M1084 Cargo Truck with Hydraulic Material Handling Crane ( MHE ) Crane 1993 Stewart & Stevenson FMTV MTR
|
Vehicle Model
|
M1084
|
|
NSN
|
2320-01-354-3387
|
|
Drive
|
6 x 6 (full-time) with locking interaxle differential
|
|
Engine
|
Diesel, EPA compliant, 290 hp
|
|
Transmission
|
Fully automatic
|
|
Axles
|
Single reduction with outboard planetaries
|
|
Cab
|
3-Man, cab-over-engine
|
|
Tires
|
Super singles with CTIS
|
|
Dimensions
|
|
306" (7,768 mm)
|
|
Operational
For Air Transport
|
112" (2,845 mm)
105.5" (2,680 mm)
|
|
96" (2,438 mm)
|
|
177" (4,500 mm)
|
|
No Kits, Crew, Fuel
|
23,677 lb (10,740 kg)
|
|
Loaded
|
22" (559 mm)
|
|
Performance Characteristics
|
|
Governed, at Gross Weight
|
58 mph (94 km/h)
|
|
Minimum, at Gross Weight
|
300+ mi (483+ km)
|
|
60%
|
|
40o
|
|
Standard
|
36o
|
|
30%
|
|
Without KIT
With KIT
|
36" (914 mm)
60" (1,524 mm)
|
|
10,000 lb (4,536 kg)
|
|
21,000 lb (9,526 kg)
|
|
Equipment Specifications
|
|

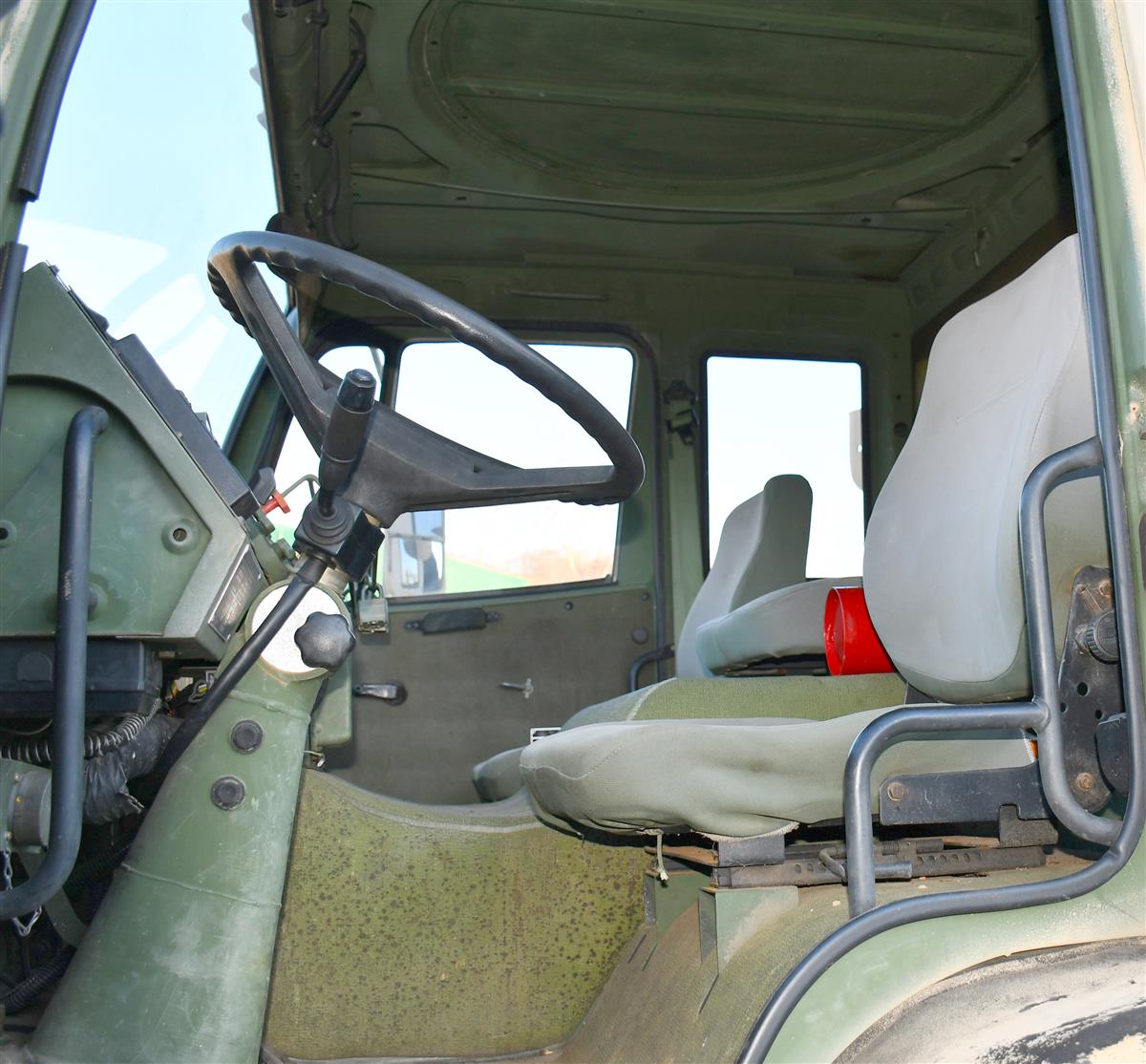

Crew Seating
|
3-Man
|
|
Seat Design
|
Fore/Aft adjustable
|
|
Steering Wheel
|
Adjustable, tilt and telescopic
|
|
Steering Type
|
Power assist
|
|
Storage (behind seats)
|
4 cu-ft each
|
|
Cab Suspension
|
Air spring with integral dampers
|
|
Caterpillar, Diesel, 6-Cylinder
|
6.6 L, turbocharged and aftercooled
|
|
Rating
|
290 hp (216 kW) @ 2600 rpm, EPA-certified
|
|
Governor
|
Mechanical
|
|
Fuel
|
Diesel, DF-2, JP-4, JP-8, V V-F-800
|
|
Oil
|
18 qt (17 L) (MIL-L-2104D, MIL-L-46167)
|
|
Cooling
|
Water, radiator
|
|
Fan
|
Engine-driven, clutch-type
|
|
Allison
|
Fully automatic, electronically controlled
|
|
Speeds
|
7 speeds, automatic/select
|
|
Full-time All-wheel Drive
|
Integral transfer case with locking interaxle differential
|
|
Normal Operation
|
30% torque front wheels, 70% torque rear wheels
|
|
Off-Road (locked diff.)
|
Equal speed front-to-rear
|
|
Oil
|
31.8 qt (30 L) (MIL-L-2104D, MIL-L-46167)
|
|
Rockwell
|
Front, Ft-rear, and R-rear
|
|
Carrier
|
Single reduction, amboid gearing
|
|
Wheel Ends
|
Bevel gear wheel end reduction
|
|
Wheel End Ratio
|
2:1
|
|
Overall Axle Gear Ratio
|
7.8:1
|
|
Front Axel Steering Angle
|
35o
|
|
Brakes
|
Air-activated, internal expansion (wedge)
|
|
Engine-driven
|
EMI/RFI suppressed, waterproof
|
|
Rating Standard
|
100 amp
|
|
Option
|
200 amp
|
|
Voltage
|
12/24 V
|
|
Eaton
|
Electronic (cab-mounted) controls
- Highway - Cross-country - Sand/Mud/Snow
- Emergency
|
|
Dimensions
|
168 x 95" (4,267 x 2,413 mm)
|
|
Ladder
|
Stowed, metallic
|
|
Construction
|
All steel, E-coat rustproofing, dropside with side rail storage
|
|
Standard Options
|
Bows and tarp kit
|
|

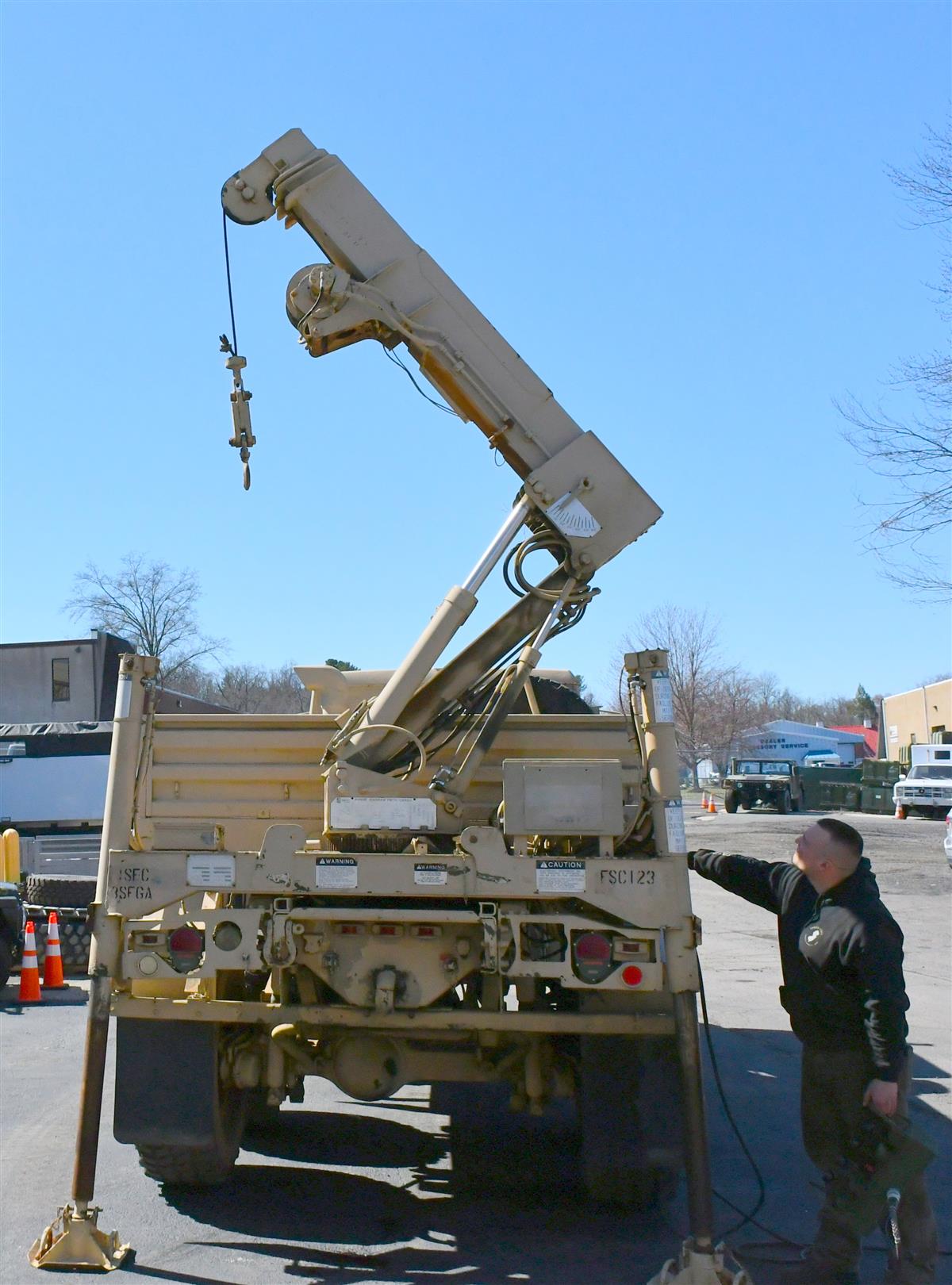

Loading/Unloading Crane
|
Loads/unloads cargo bed and trailer, hydraulic operation, 2,500 lb (1,134 kg) lift at 14 ft (4.3 m), 5,000 lb (2,268 kg) at 7 ft (2.1 m), includes stabilizers and local and remote controls
|
|
Standard Option
|
Fore/aft recovery positions; hydraulic operation;
280 ft (85.3 m) line capacity; 15,500 lb (7,031 kg) bare drum line pull; 110% overload
|
