M1101 3/4 Ton Aluminum Cargo Trailer HMMWV
|

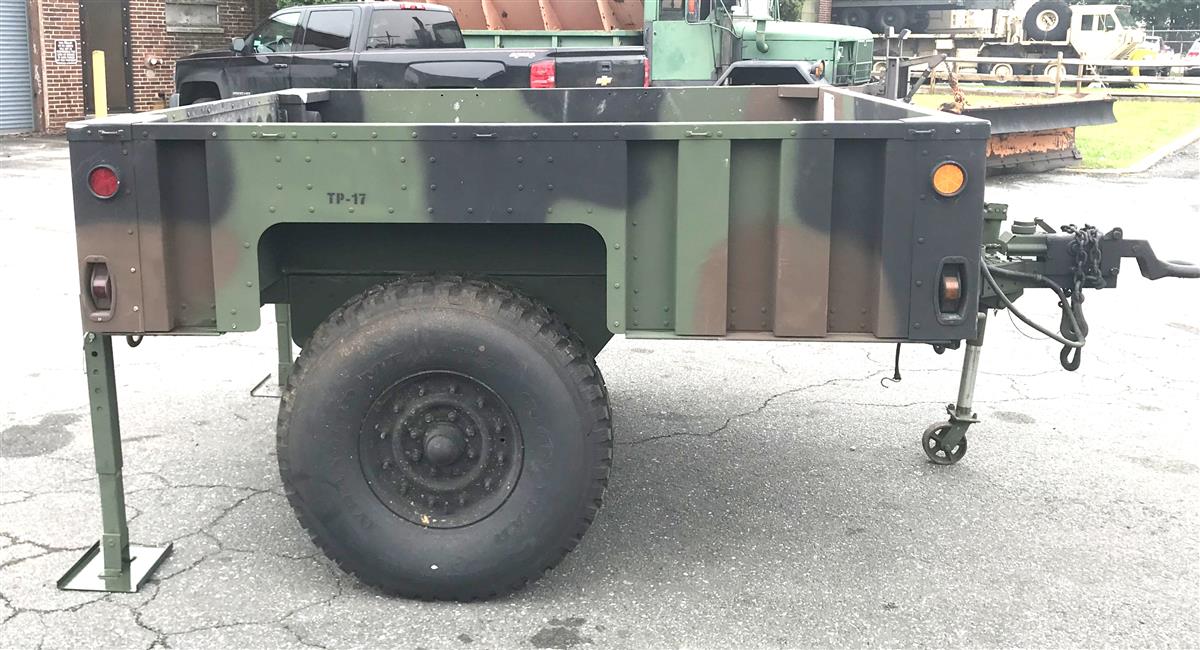

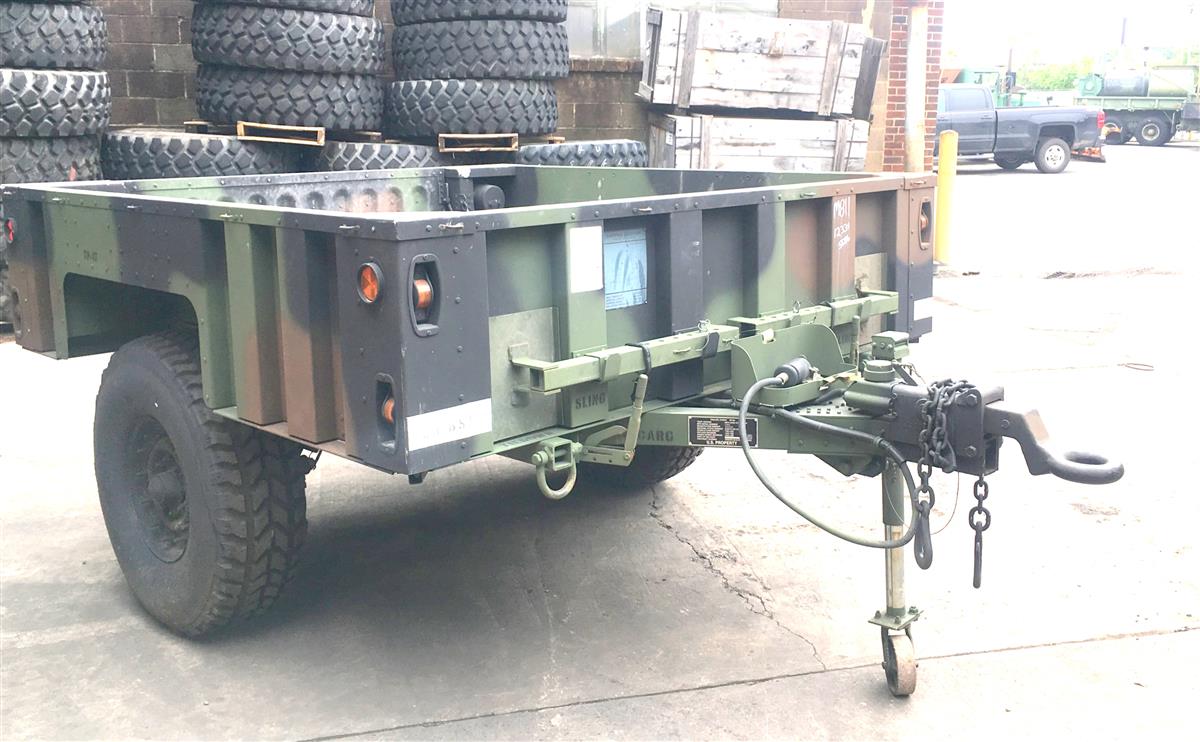

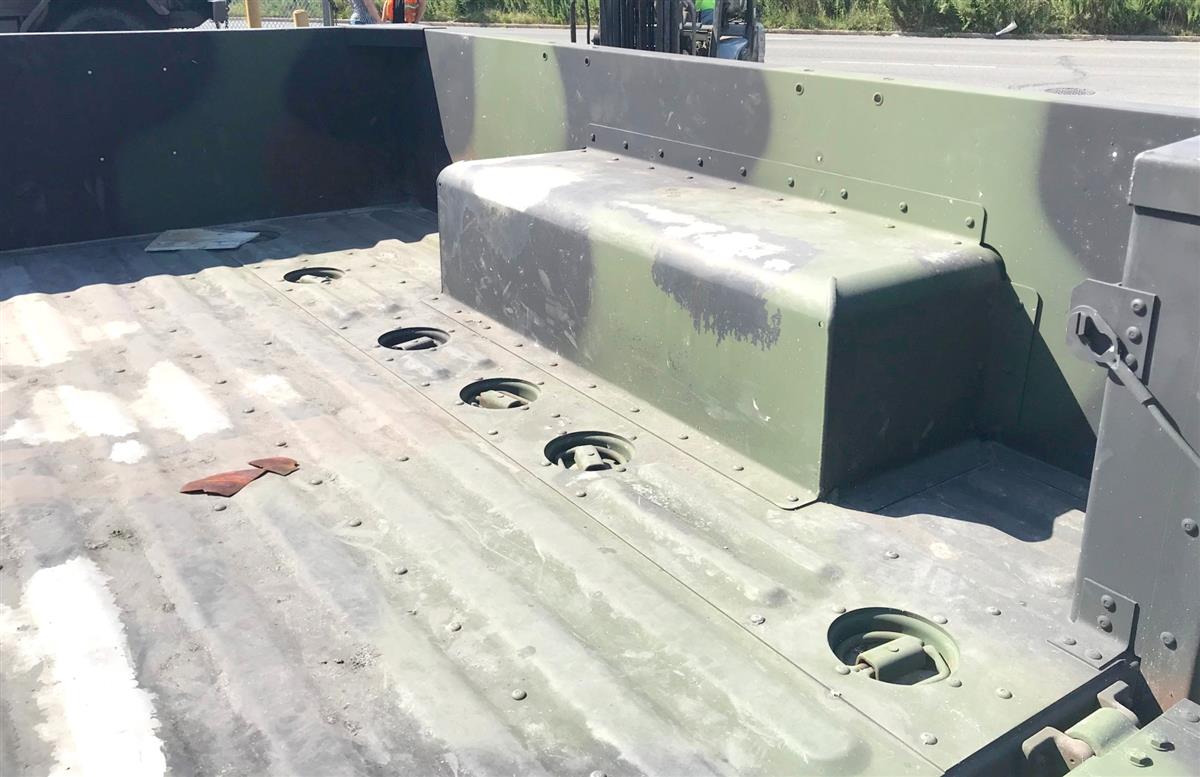

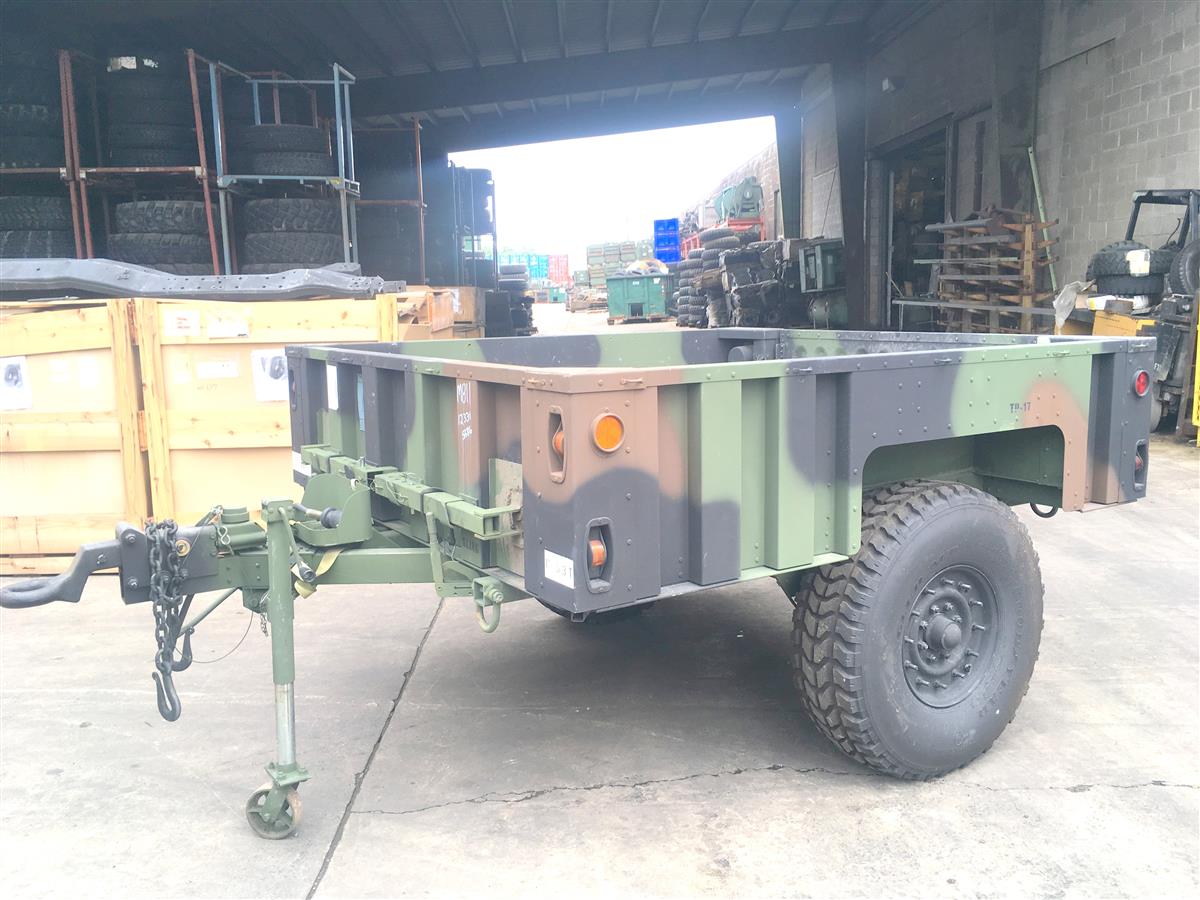

M1101 Aluminum Cargo Trailer
Maximum Vehicle Weight:
|
M1101: 4200 lb (1905 kg)
|
| Curb Weight |
1460 lb ( 662 kg) |
| Maximum Payload Capacity |
M1101: 2740 lb (1243 kg) |
| Hull |
Unitized body construction using aircraft grade aluminum and chromoly steel |
| Overall Length |
132 inches (335cm) |
| Overall Width |
85.6 inches (217 cm) |
| Overall Height |
52.5 inches (133 cm) |
| Overall Height w/Soft Top Kit |
99.5 inches (253 cm) |
| Track Width |
72.5 inches (184 cm) |
| Drawbar Length |
93.2 inches (237 cm) (from axle center to eye center) |
| Drawbar Eye Height |
29.5 inches (75 cm) |
| Deck Height |
34.5 inches (88 cm) |
| Ground Clearance (Laden) |
16 inches (41 cm) |
| Suspension Type |
Fully independent progressive rate trailing arm suspension |
| Axle |
Tubular steel |
| Spring Media |
Progressive rate torselastic rubber chords |
| Shock Absorbers |
Telescopic, direct acting, one per wheel, HMMWV compatible |
| Wheels |
16.5 X 8.25, two piece steel, HMMWV compatible, 8 on 6.5 inch bolt pattern |
| Tires |
37X12.50R16.5 Goodyear Wrangler M/T, with 30-mile runflat inserts, HMMWV compatible |
| Brakes |
12 inch x 2 inch free backing hydraulic surge brakes with automatic breakaway actuation. Independent lever-operated left and right side mechanical parking brakes. |
| Electrical System |
24 Volt DC sealed lighting system with blackout convoy lights, 12 pin connector plug mates with HMMWV |
| Max Speed (Primary Roads) |
55 mph (88 kph) |
| Max Speed (Secondary Roads) |
35 mph (56 kph) |
| Max Speed (Off Road) |
20 mph (32 kph) |
| Departure Angle |
39 degrees |
| Turning Angle |
80 degrees |
| Fording |
60 inches (152 cm) |
