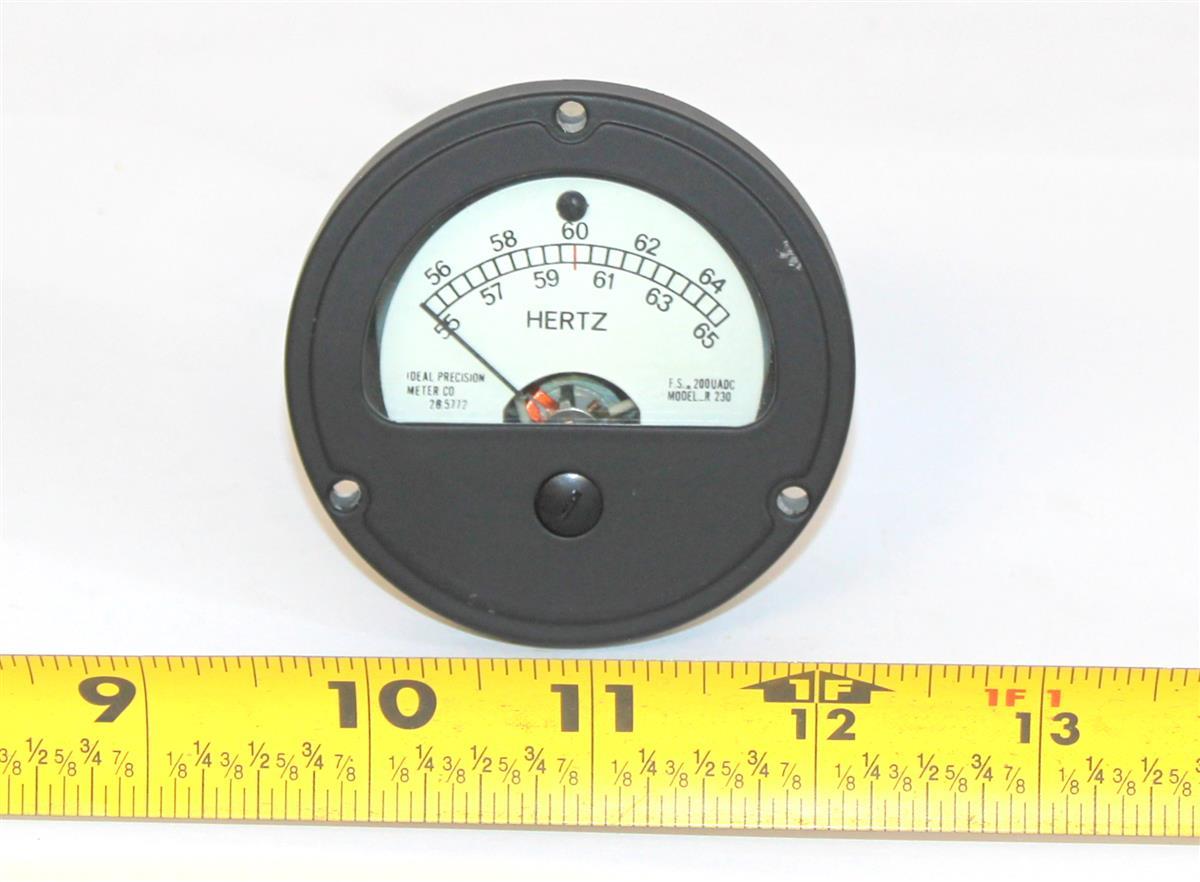

Electrical Frequency Meter Scale Gauge 2A042 4A084 5 KW 10 KW Generator
- Current Circuit is DC
- Overall Length is 2 inches
- Scale Division Quantity is 10 Single Indicator Single Range
- Mounting Stud Length is 0.375 inches
- Overall Diameter is 2.695 inches
- Mounting Bolt Circle Diameter is 2.440 inches
- Sensitivity Rating is 200 Microamperes
- Meter Depth behind Mounting Flange is 2.210 inches
- Operating Voltage Rating in Volts is 65.0 AC Nominal
- Diagram shown in Pictures
Fits
Gen-Set Model 2A042 - 5 KW Generator Gen-Set
MEP-017A - 60 HZ - Gasoline Engine Driven
MEP-002A - 60 HZ - Diesel Engine Driven
MEP-022A - 400 HZ - Gasoline Engine Driven
Gen-Set Model 4A084 - 10 KW Generator Gen-Set
MEP-018A - 60 HZ - Gasoline Engine Driven
MEP-003A - 60 HZ - Diesel Engine Driven
MEP-412A - 60 HZ - Gasoline Turbine Engine Driven
MEP-112A - 400 HZ - Diesel Engine Driven
MEP-414A - DC - Gasoline Turbine Engine Driven
