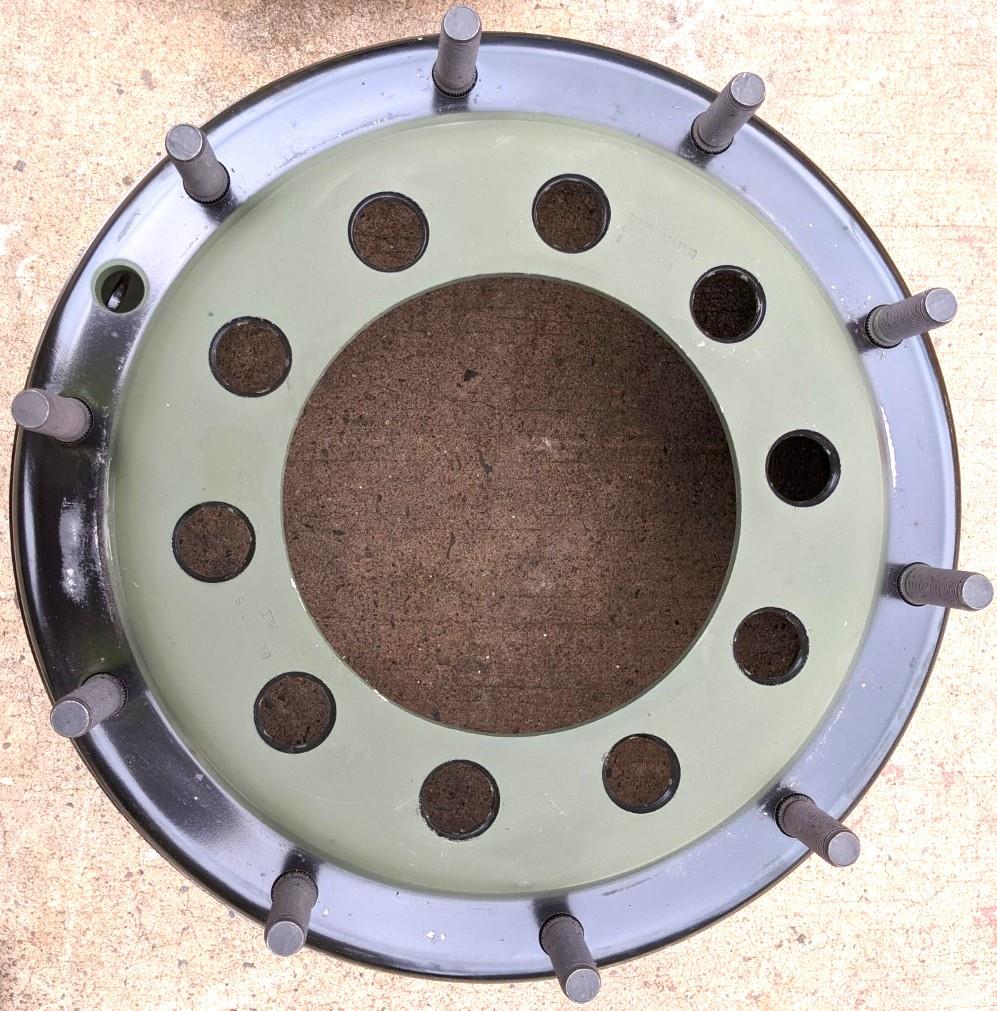

10-Lug 2-Piece Budd Style Tubeless Super Single Rim / Wheel
Standard 10 bolt lug pattern.
- 10 hole standard bolt pattern
- 20" inches x 10" inches
- Pilot hole diameter - 8.75" inches
- Lug pattern, center to center - 11.5" inches
- Offset - 9.5" inches
- NOS Rim Includes 1/4" Inch thick o-ring and 10 rim nuts
- Used rim does not include Oring
- 3/4 inch diameter stud
- 16 thread per inch count stud
Will accept 365/85R20, 395/80R20, 14 x 20, 16 x 20 super single tires
Click Here for Black 2-Piece Rim
Click here for Valve Stem
Click Here For 20" O Ring For Two Piece Wheel Rim
Fits 5 Ton Military Truck
M939, M939A1, M923, M923A1, M925, M925A1, M927, M927A1, M929, M929A1, M930, M930A1, M931, M931A1, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M54 and variants 5-Ton Trucks
M1078, M1079, M1080, M1081 2 ½ Ton Trucks
M1083, M1084, M1085, M1086, M1087, M1088, M1089, M1090, M1091, M1095, M1096 5-Ton Trucks
M1082 2 1/2 Ton and M1095 5-Ton Cargo Trailers and Variants
valve stem sold separately
| GROOVE DEPTH |
2.101 INCHES MINIMUM AND 2.195 INCHES MAXIMUM |
| OVERALL WIDTH |
11.920 INCHES MINIMUM AND 12.320 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER |
0.900 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY |
10 |
| MOUNTING BOLT CIRCLE DIAMETER |
17.250 INCHES NOMINAL |
| END ITEM IDENTIFICATION |
2320-01-205-2692 |
| PILOT HOLE DIAMETER |
15.530 INCHES NOMINAL |
| DESIGN TYPE |
DEMOUNTABLE RIM |
| DESIGN FORM |
DISK |
| MOUNTING TYPE FOR WHICH DESIGNED |
SINGLE TIRE |
